Mobile Stage Truck
- Deployed Stage Area
- 10–105 m²
- Deployment
- Single / double / triple-side; hydraulic
- Stage Load
- 400–500 kg/m²
- Roof / Truss Load
- 400–450 kg each; 2,800–3,500 kg total
- LED Display
- P3–P10; 6–21 m²
- Power Supply
- Diesel generator / lithium battery / 220 V shore power
Reference configuration. Final values are confirmed for the selected chassis, model and destination.
About the Mobile Stage Truck

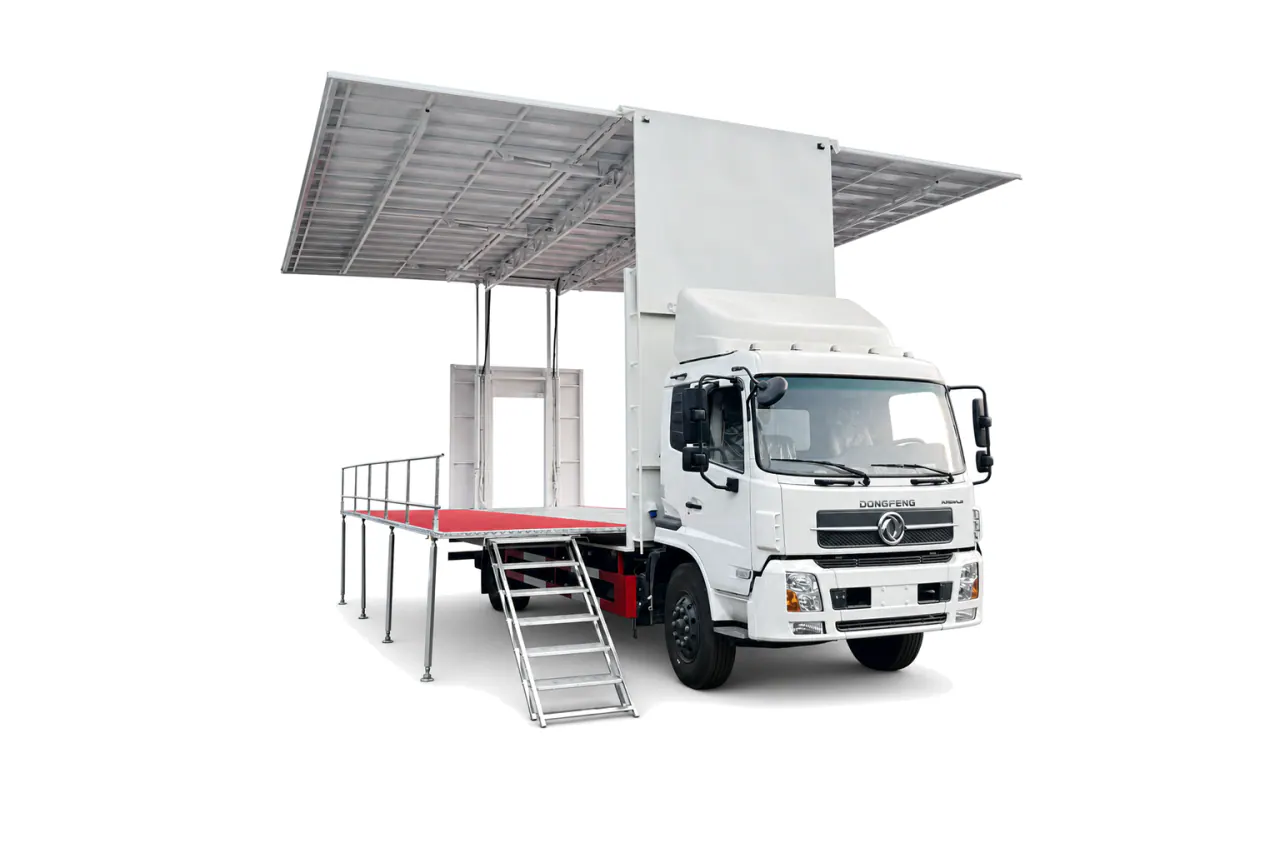

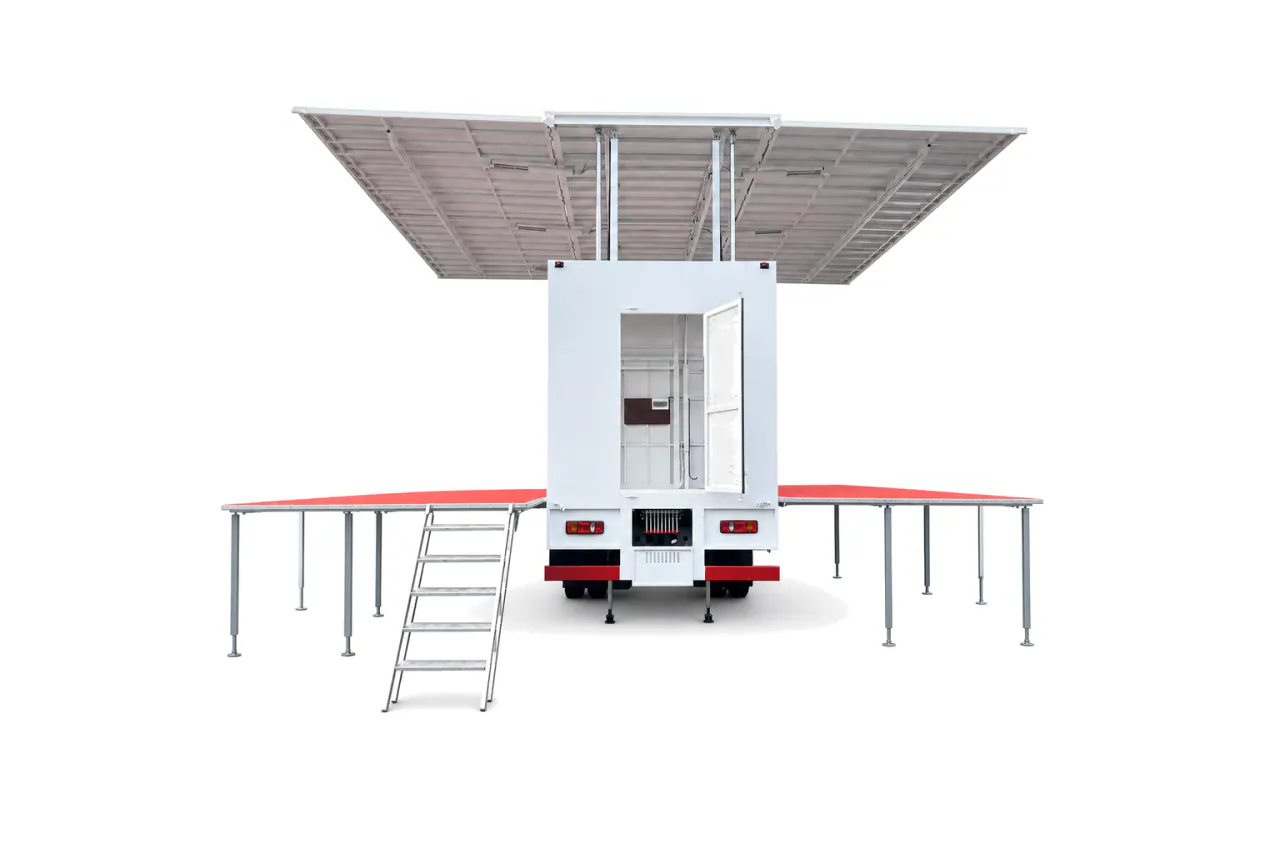

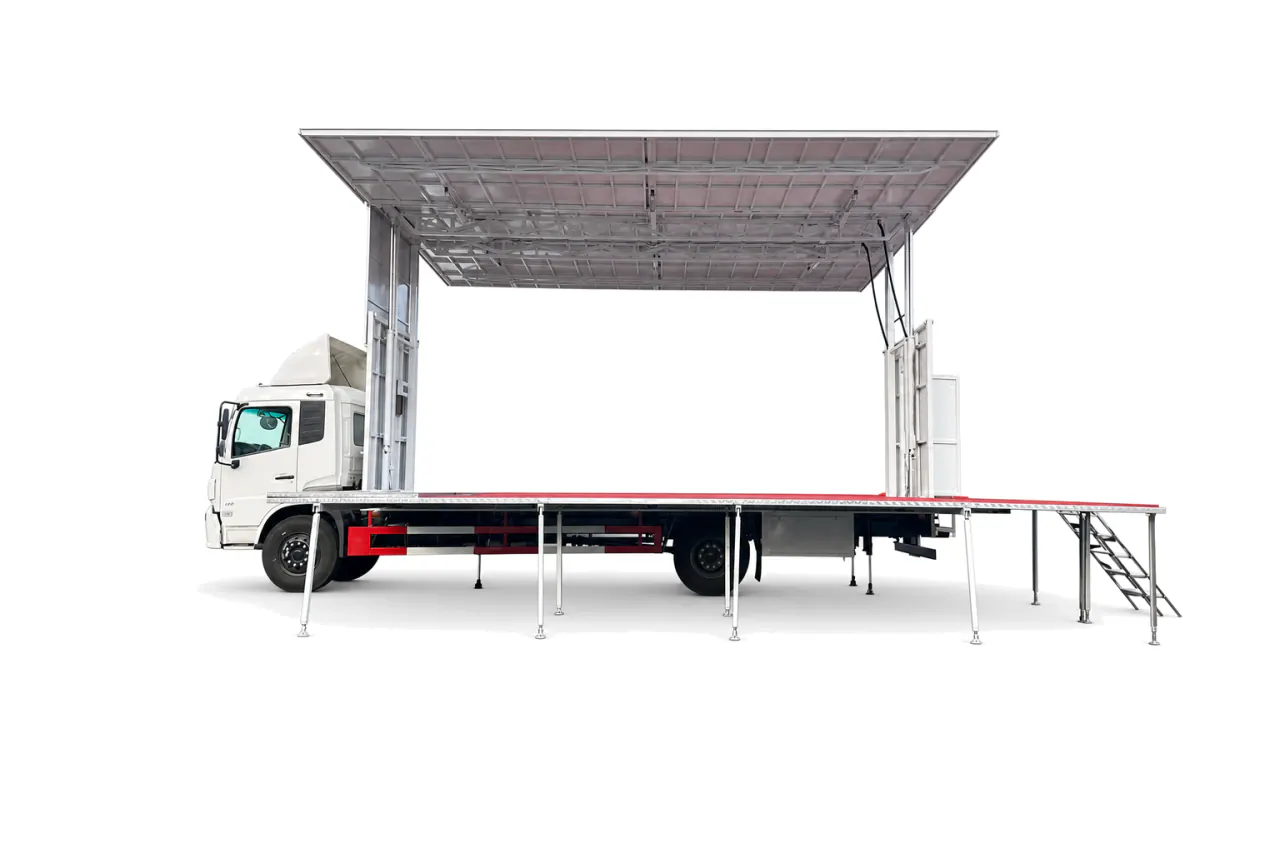

The KEEYAK Mobile Stage Truck is an event vehicle whose body panels and structural sections deploy into a raised presentation or performance platform. Available configurations combine stage load (400–500 kg/m²) with roof / truss load (400–450 kg each; 2,800–3,500 kg total) to match different operating duties and site requirements.
It serves event companies, brands, municipalities, and touring organizers needing repeatable temporary staging. Deployed footprint, platform and roof loads, opening method, ground support, wind limits, power, access, audience separation, transport dimensions, and local permits require confirmation. Final selection should confirm power supply, deployed stage area, and site conditions.
What Is a Mobile Stage Truck Used For
- Corporate Roadshow EventsBrands use the roadshow truck for scheduled presentations at multiple locations, reducing separate stage transport while preserving a repeatable audience-facing setup. The selected stage load must match operating conditions and site access.
- Community Public ProgramsMunicipalities deploy the stage lorry for ceremonies, cultural activities, and public information events at sites with suitable access, ground, and crowd controls. Suitability depends on roof / truss load and site conditions.
- Outdoor Product LaunchesCompanies present products or demonstrations from a defined elevated platform, with roof loads, electrical services, viewing area, and weather plan prepared beforehand. Selection depends on stage load, duty cycle, and site conditions.
- Touring Live PerformancesOrganizers move a configured stage between compatible venues for music, speaking, or entertainment programs that fit the approved platform and production loads. Suitability depends on roof / truss load and site conditions.
What buyers usually confirm first
How is the deployed stage size determined?
It depends on body geometry, opening sections, support layout, access stairs, safety barriers, and venue clearance. Final dimensions must follow the approved design drawing. Buyers should confirm task requirements, duty cycle, and site conditions before ordering.
