8×4 Concrete Pump Truck
- Max Concrete Output
- 60–180 m³/h
- Max Placing Height
- 17–75 m
- Boom Sections
- 4–7
- Engine Options
- Multi-brand engine / chassis options
- Drive Configuration
- 8×4
- Steering
- LHD / RHD
Reference configuration. Final values are confirmed for the selected chassis, model and destination.
About the 8×4 Concrete Pump Truck

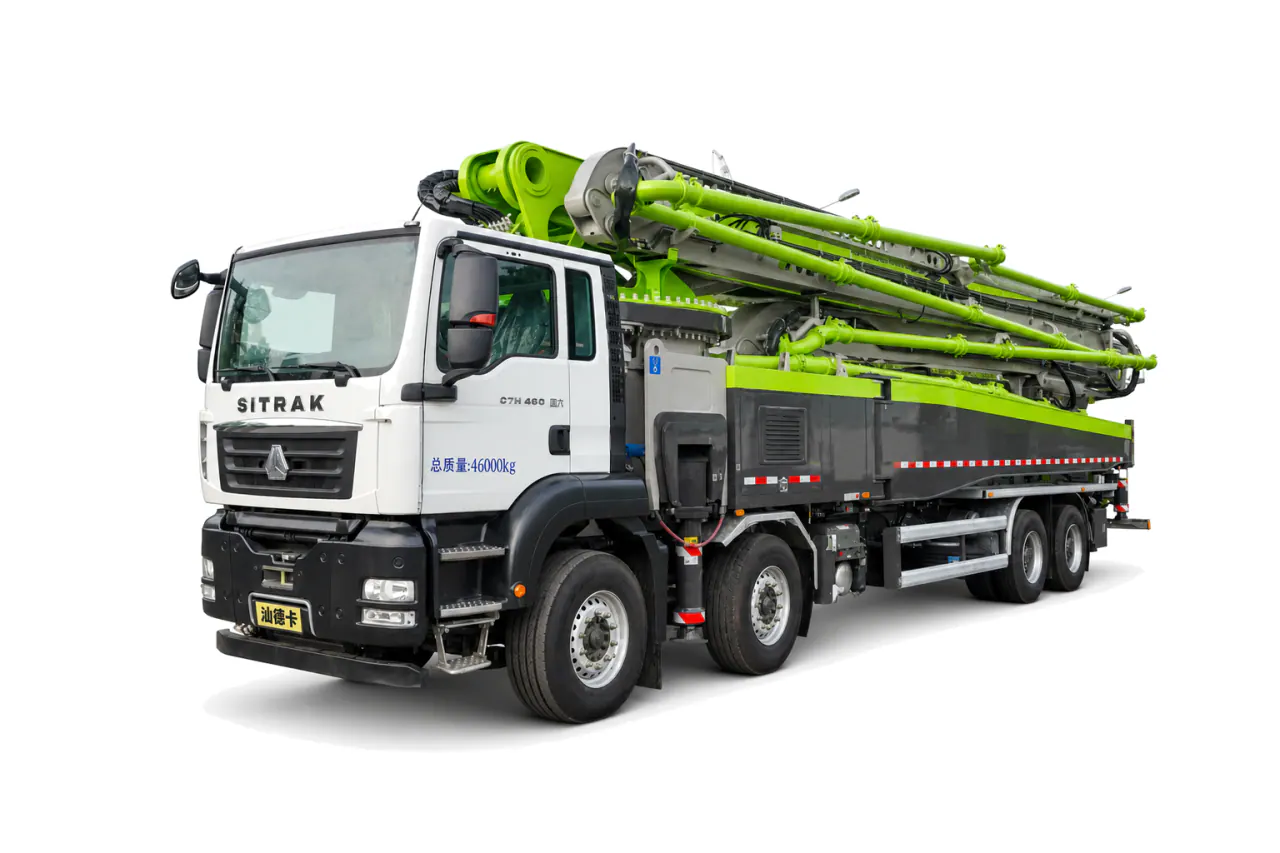

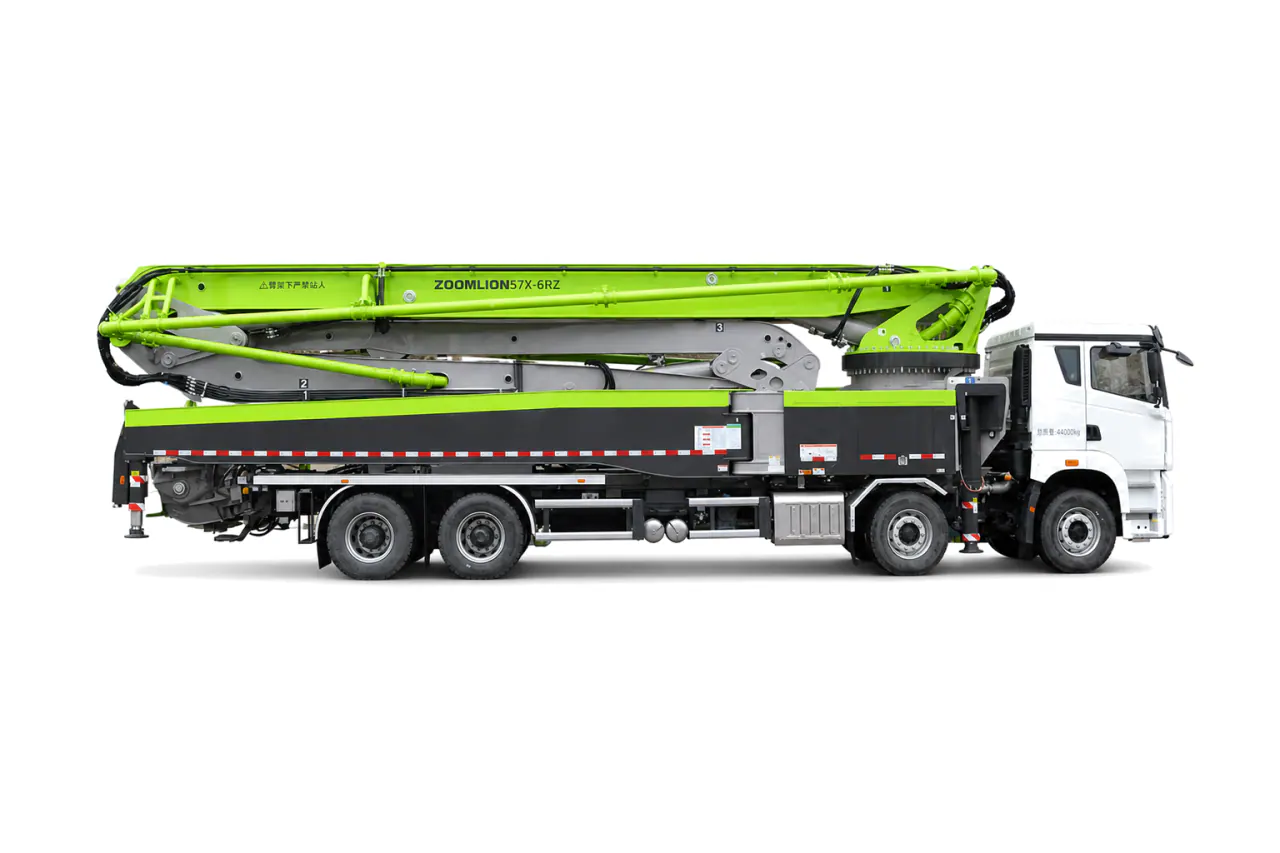

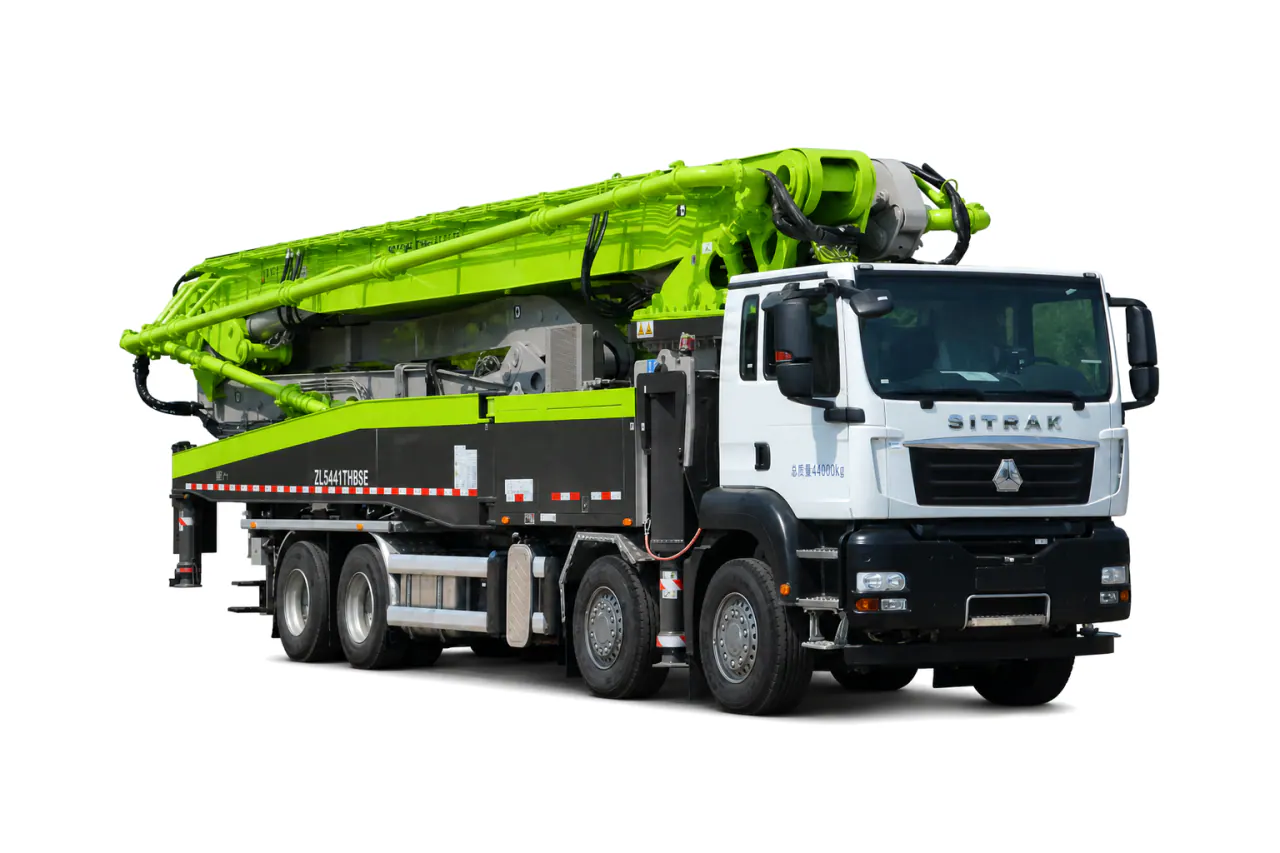

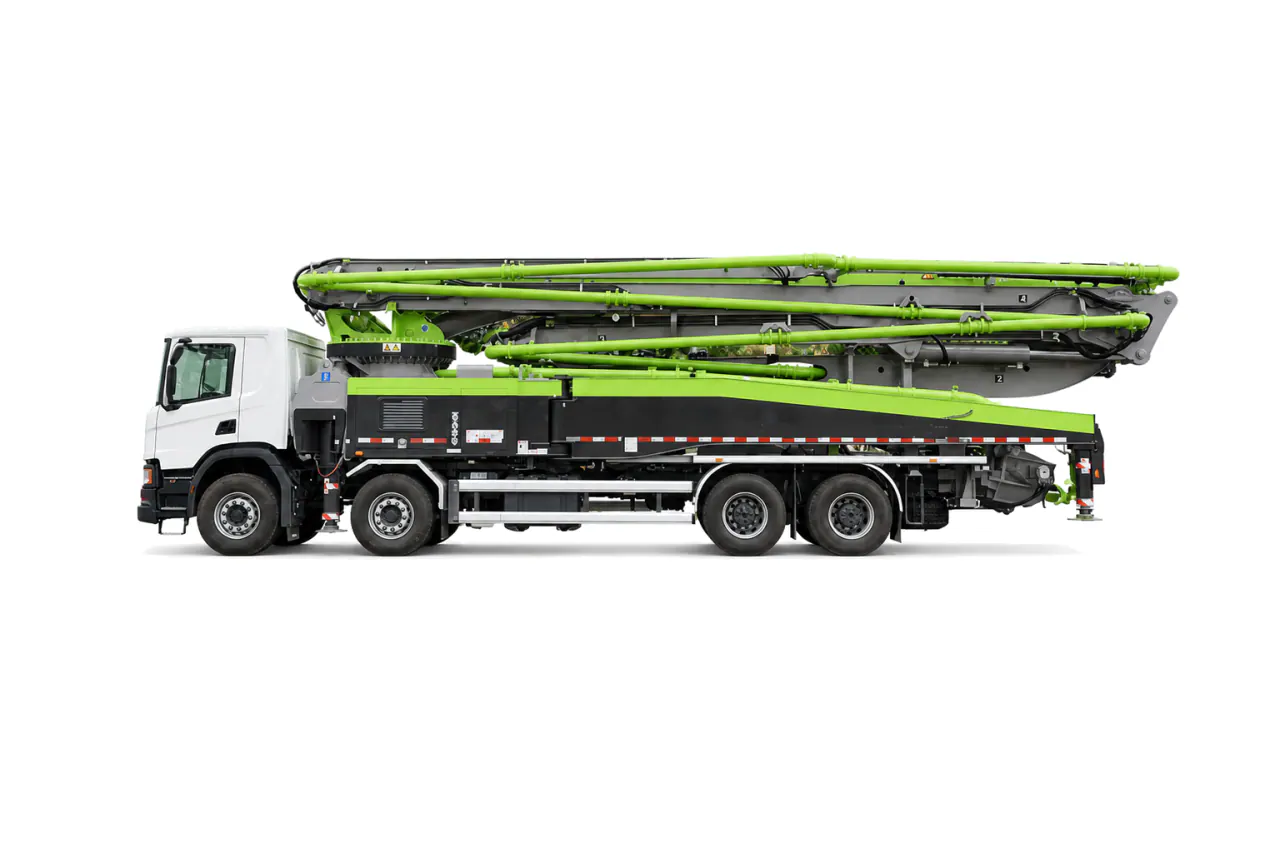

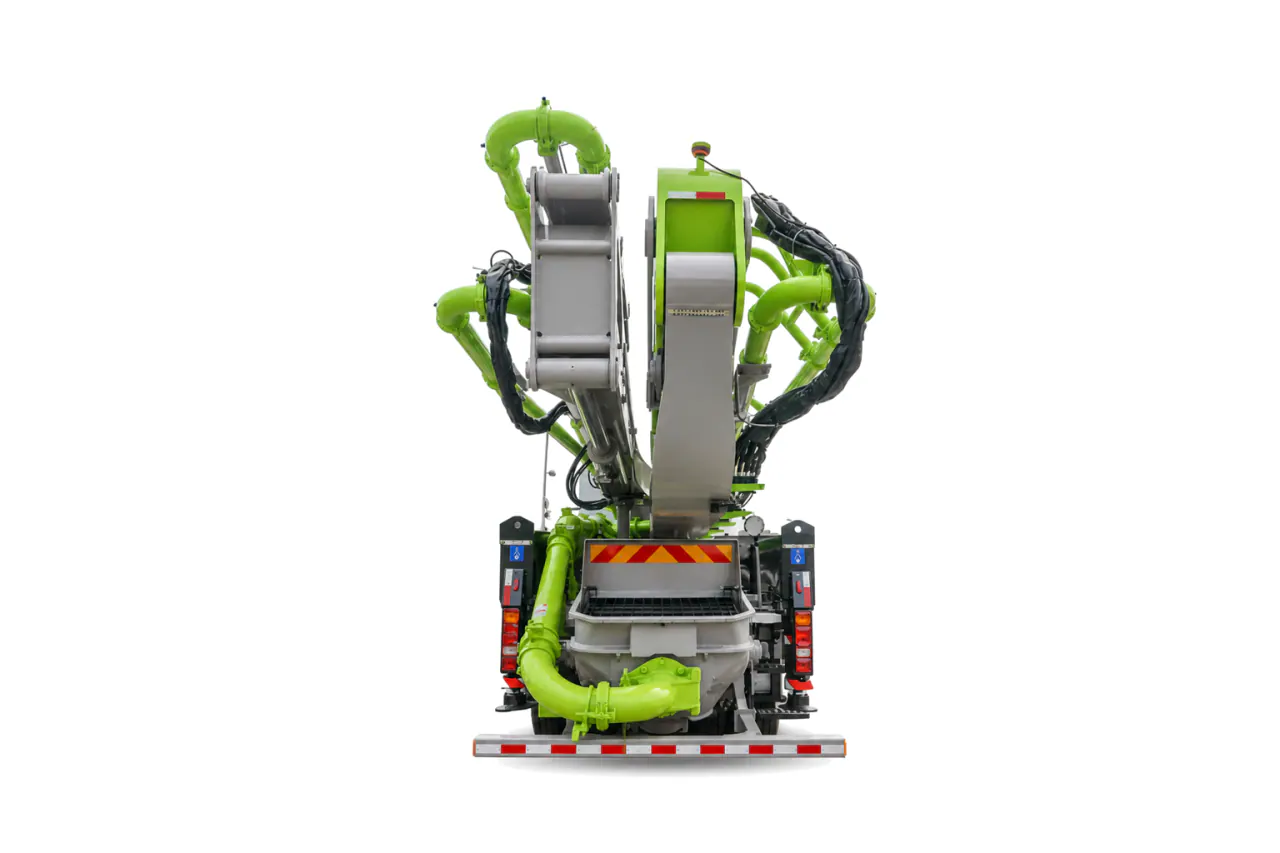

The KEEYAK 8×4 Concrete Pump Truck is a four-axle concrete placement vehicle carrying a pump, receiving hopper, delivery pipeline, and articulated placing boom. This multi-axle boom pump transfers compatible fresh concrete from mixer discharge to planned pour locations. Specifications include max concrete output (60–180 m³/h) and boom sections (4–7).
It is intended for major contractors and concrete service companies working on large structural or infrastructure projects. Required reach, pump demand, superstructure mass, axle distribution, turning path, site setup, ground-bearing capacity, mixer flow, and cleanout arrangements govern selection. Final chassis and operating configuration must be confirmed before ordering.
What Is an 8×4 Concrete Pump Truck Used For
- High-Rise Structural PoursThe truck-mounted concrete pump supplies elevated structural zones from an engineered setup area when boom coverage, wind limits, and site controls are suitable. Suitability depends on max concrete output and site conditions.
- Bridge Deck ConstructionCrews place compatible concrete across bridge sections while coordinating stabilizing positions, mixer access, pour sequence, pipeline movement, and traffic controls. Buyers should confirm boom sections, operating conditions, and site access before ordering.
- Large Industrial SlabsThe pumping vehicle supports continuous slab placement where delivery scheduling, output demand, boom coverage, joint planning, and washout management are aligned. Selection depends on max concrete output, duty cycle, and site conditions.
- Infrastructure Pier PlacementContractors convey concrete to prepared piers, columns, or retaining structures where excavation edges, overhead hazards, and ground reactions have been assessed. The selected boom sections must match operating conditions and site access.
What buyers usually confirm first
Can the pump handle high-density concrete mixes?
Only if the specific mix is pumpable through the selected pump and pipeline. Density also affects hopper operation, output demand, and completed-vehicle loading. Buyers should confirm task requirements, chassis limits, site access, duty cycle, and operating conditions before ordering.
