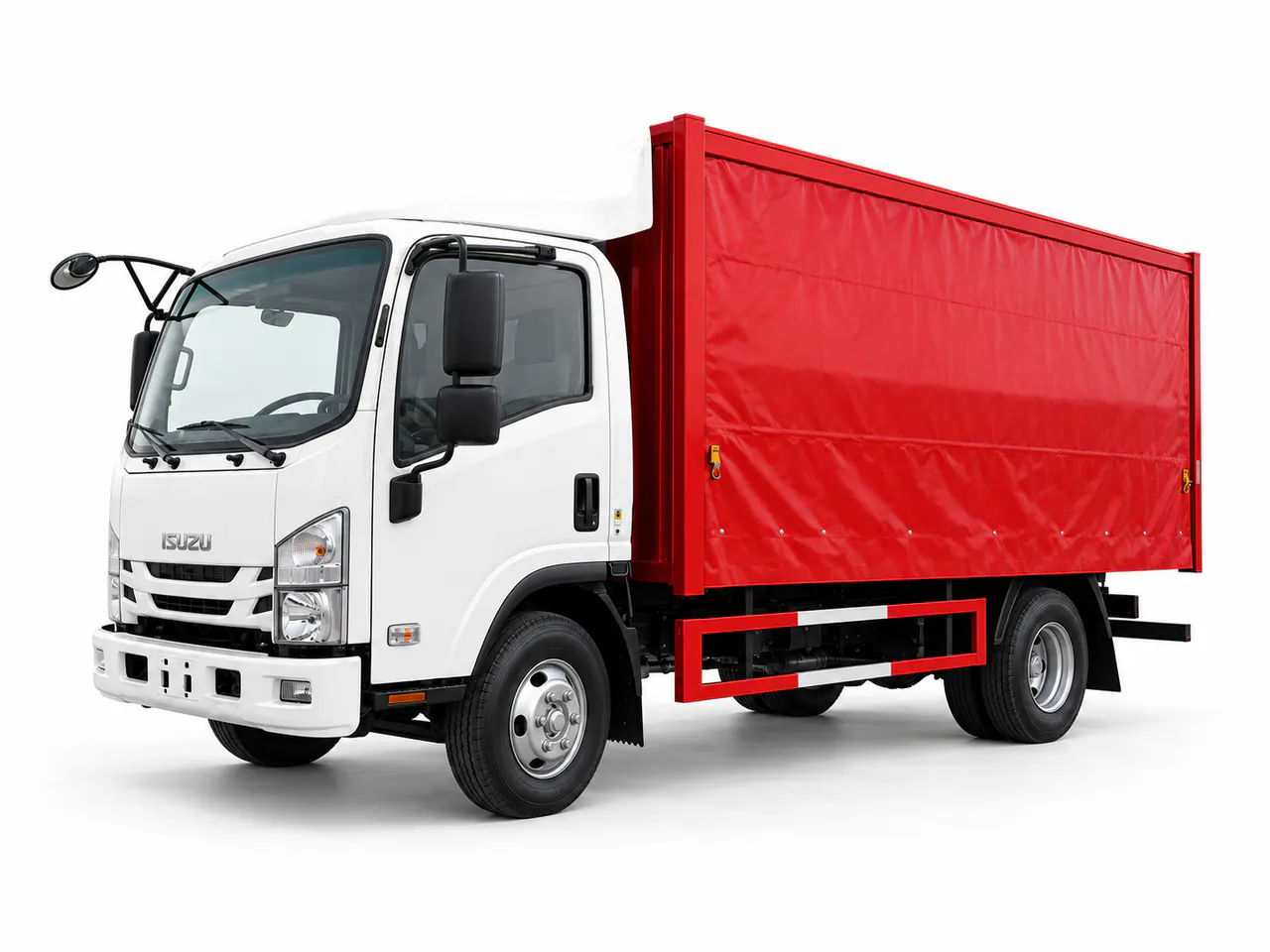

Curtainsider truck
Compare configurations
Curtainsider body size and loading access
| Configuration | Internal dimensions and side loading | Pallet and cargo use | Route fit | Main advantage | Selection limits and trade-offs |
|---|---|---|---|---|---|
| Light Duty | Reference internal length 4.2 to 6.2 m; height 2.4 to 2.6 m. Compact side-access body for smaller pallet or mixed loads | Local retail, parcel and light commercial cargo | Urban multi-stop routes with frequent side access | Fast side loading in a compact footprint | Loads beyond confirmed floor or axle ratings, or cargo requiring rigid-wall security |
| Medium Duty | Reference internal length 6.8 to 7.6 m; height 2.5 to 2.7 m. Balanced body length for repeated forklift side loading; check the clear gap between posts | Regional palletized and long-item distribution | City-to-region delivery with varied loading points | Balances pallet capacity and site access | Sites without enough side-loading or turning space, or loads beyond confirmed body and axle limits |
| Heavy Duty | Reference internal length 9.6 to 13.6 m; height 2.6 to 2.8 m. Larger side-access body for planned forklift and dock handling | Higher-volume palletized regional and trunk cargo | Logistics routes with suitable side and overhead clearance | Provides more space for pallets and cargo | Tight loading sites or cargo needing rigid-wall security |
Before you choose a curtainsider truck
A curtainsider truck has flexible curtains that slide along a roofed cargo deck. Side loading works when the opening between posts, the gathered curtain and the forklift approach fit the packed load. Internal body size and the clear side or rear opening are separate measurements on the drawing. The comparison lists published length and height ranges for each body family; their largest measurements are not necessarily available together. Check internal width in the linked product specifications and confirm the finished dimensions on the quotation drawing.
The curtain provides weather cover; it does not by itself establish a rated cargo-restraint system. Specify the floor duty and securing points using the curtainsider buying checklist. Any rated body needs matching documentation and permitted loading conditions, including partial loads. At the most restricted delivery site, compare curtainsider and wing van access, allowing room to handle the curtain or raise the wing. For a quotation, send the packed pallet dimensions, count and mass, forklift details, and the loading space available at each stop.
