Aerial work platform truck

Request this vehicle type Back to product group

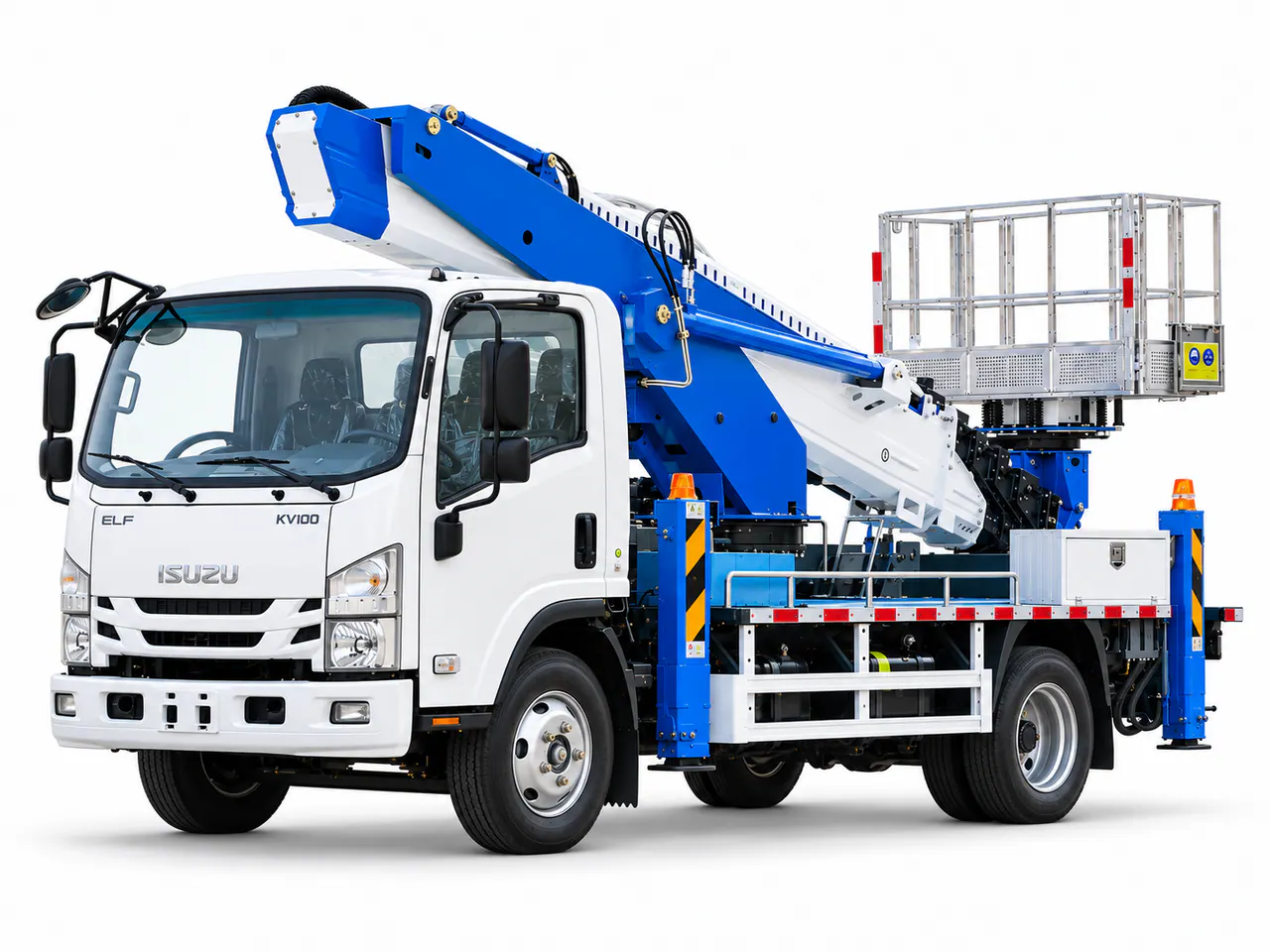

White truck with a folded blue boom and an elevated work basket.

Compare configurations

Telescopic-boom aerial work platform truck

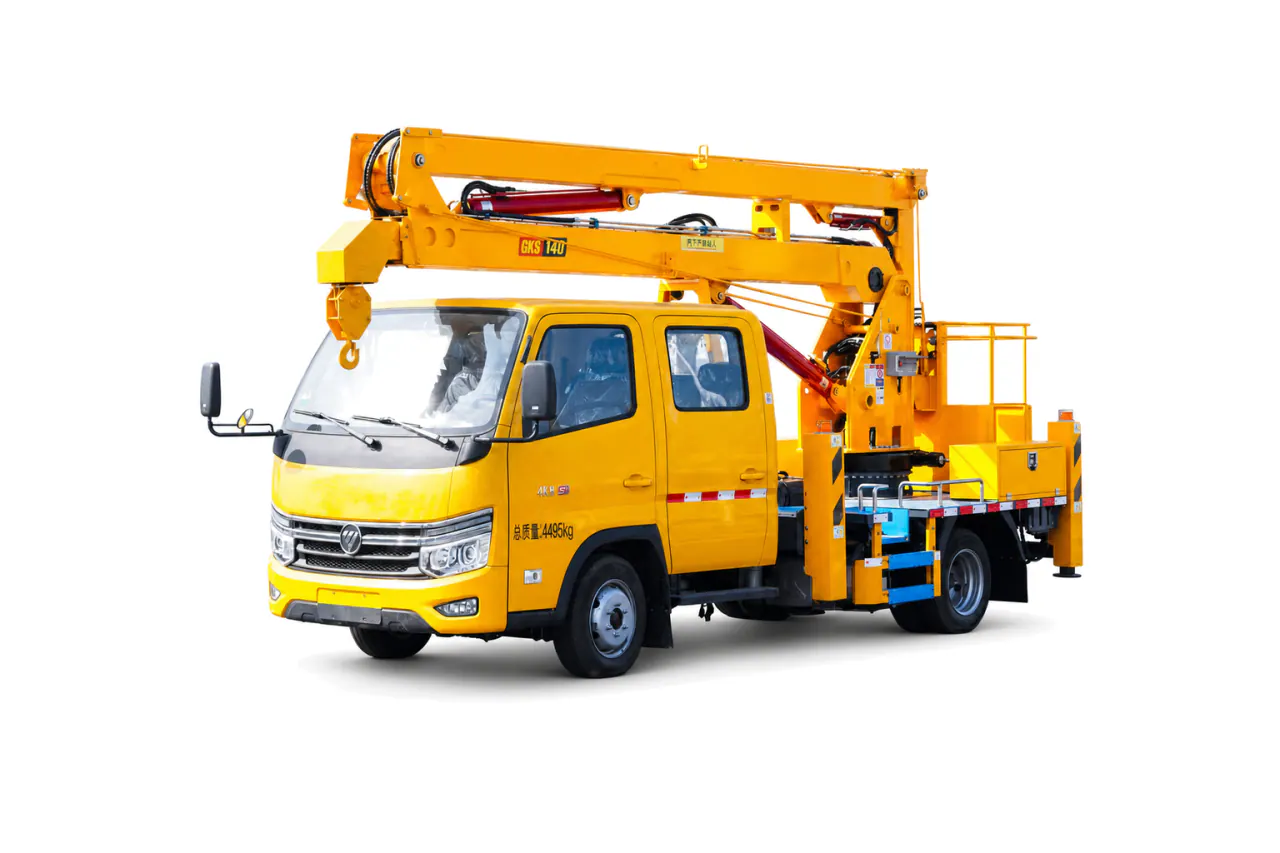

Articulating-boom aerial work platform truck

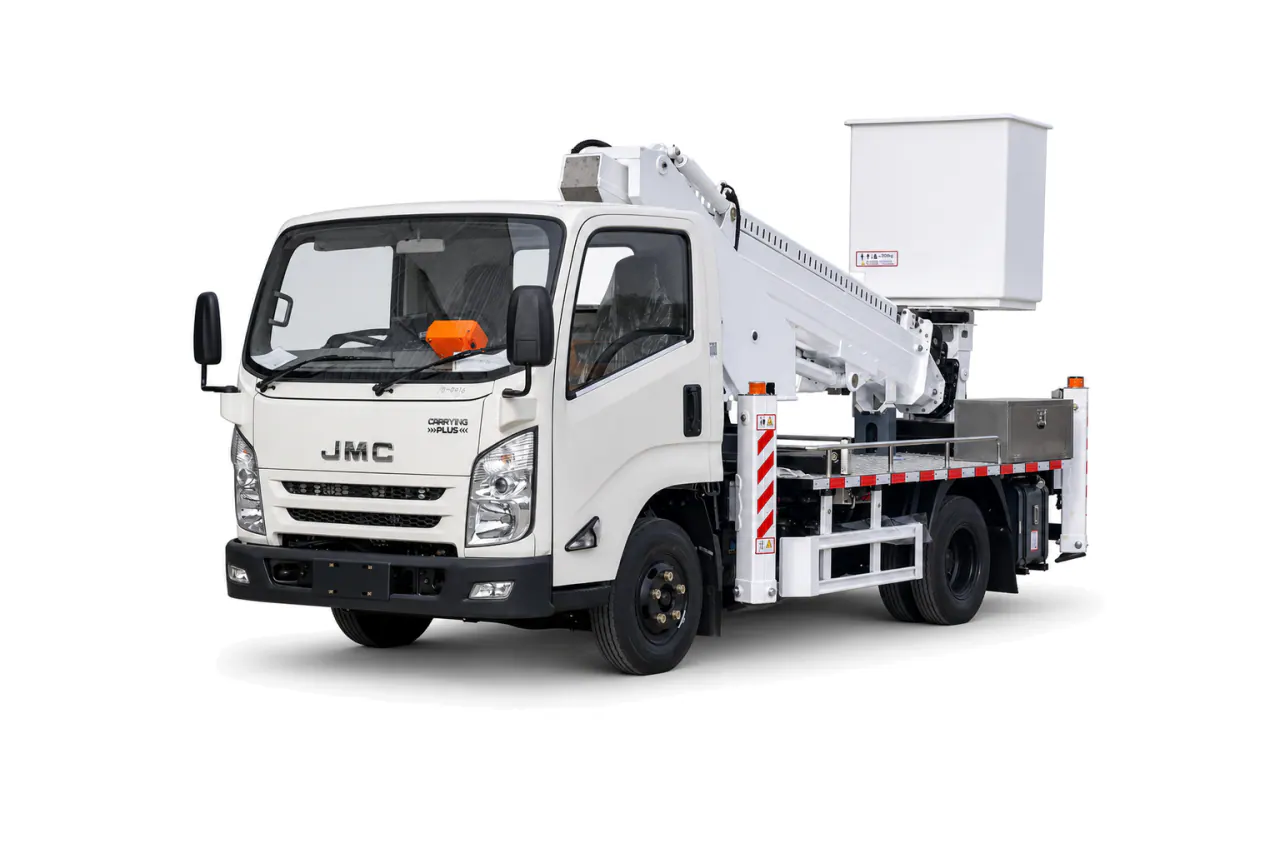

Insulated aerial work platform truck

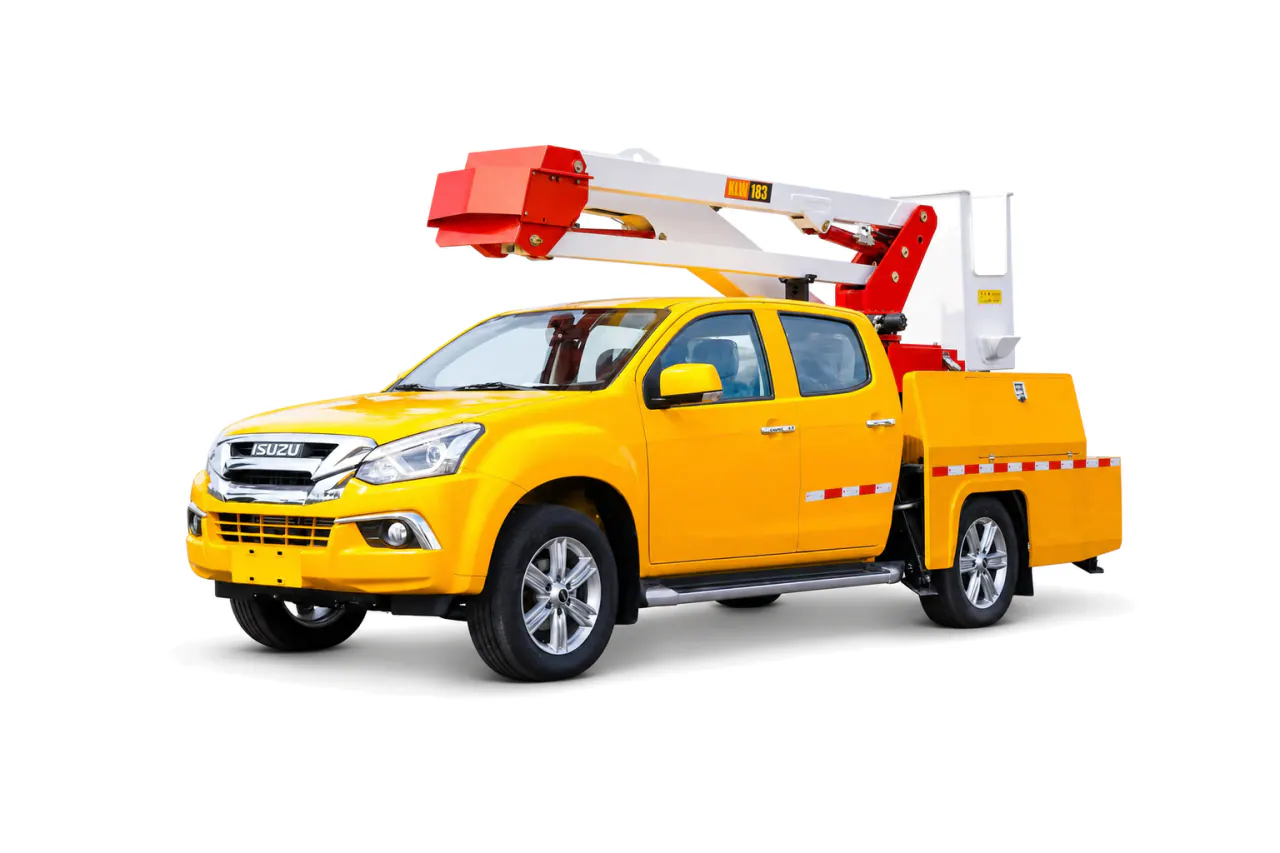

Pickup-mounted aerial work platform

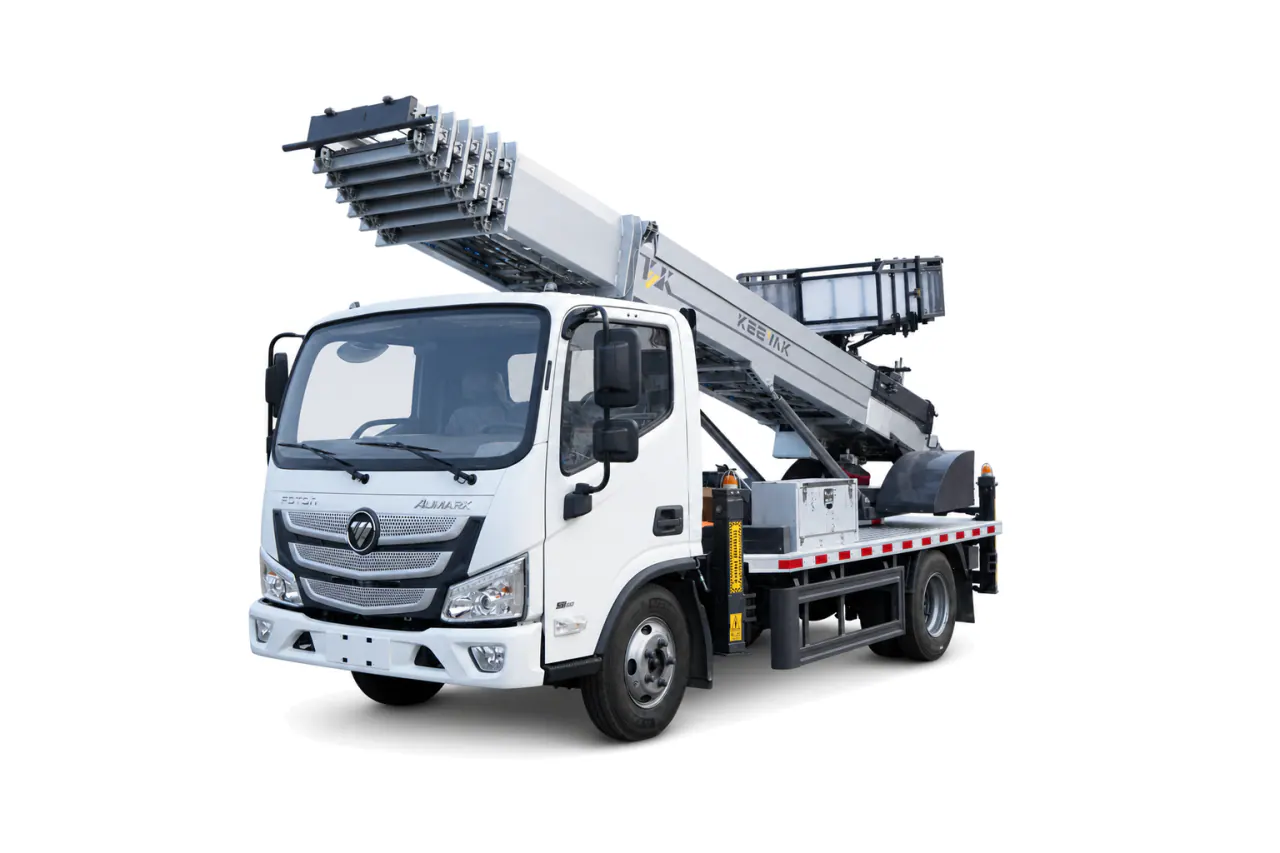

Truck-mounted aerial ladder

Compare aerial work platform configurations

Configuration	Access system	Work-position use	Route fit	Main advantage	Selection limits and trade-offs
Telescopic Boom	Straight telescopic boom; check reach at the required height and basket load	Inspection, installation and maintenance in open work areas	Roadside, utility and industrial sites with clear approach	Direct reach with a comparatively simple boom path	A task outside the exact working envelope or without a clear boom path
Articulating Boom	Jointed boom; compare the full movement around the obstruction	Maintenance where structures block a straight approach	Urban streets, plants and constrained service sites	An alternative approach where the model geometry clears an obstruction	Insufficient joint or tail-swing clearance, unsupported ground, or a task outside the rated envelope
Insulated Platform	Electrical insulation class, test status and availability subject to the confirmed boom and platform configuration	Utility-line tasks governed by the applicable safety system	Electrical utility routes with approved work procedures	Supports an insulation requirement when properly specified and verified	Any live-line work without confirmed rating, testing and procedures
Pickup-Mounted Platform	Compact platform system mounted on a pickup-based chassis	Light inspection, signage and local maintenance work	Tight urban access and frequent short-distance moves	Compact road and site footprint	High platform loads or reach beyond the confirmed compact system
Truck-Mounted Aerial Ladder	Extendable ladder provides a defined elevated access path	Building, façade and elevated access tasks suited to ladder operation	Sites with clear ladder alignment and vehicle setup space	Provides continuous ladder-based access to the work position	Insulated utility work or basket positioning around obstacles

Choosing an aerial platform for the work position

Choose a truck-mounted aerial platform by the position it must reach with the people, tools and materials in the basket. Compare working height and horizontal outreach at the same load and support condition. Maximum height and maximum outreach can occur at different positions; the quoted model's working envelope must cover the actual task. For an open approach, start with a telescopic candidate. If structures block that approach, compare telescopic and articulating boom paths on the same site sketch.

The Russia ISUZU KV100 confirmed order specifies 18 m working height and 200 kg basket capacity. It does not state the outreach at that load or establish delivery and site commissioning. Use the configuration as an order reference, then request the exact platform model, chassis and working-envelope drawing for your job. Include the required work height, horizontal offset, total platform load, obstacles and permitted parking area in the inquiry.

Check ground conditions and the space needed for outriggers, boom movement and traffic separation before settling on a chassis. If electrical insulation is required, the offered boom and platform need a confirmed rating and current test status. An insulated model name does not authorize live-line work; the rating, test records and operating procedures must support that duty under local rules.
