A JMC Dump Truck Order for Panama

Our Panama customer ordered a JMC truck with a rear-tipping cargo body and hydraulic lifting equipment. The body is mounted behind the cab, with a tailgate at the rear.

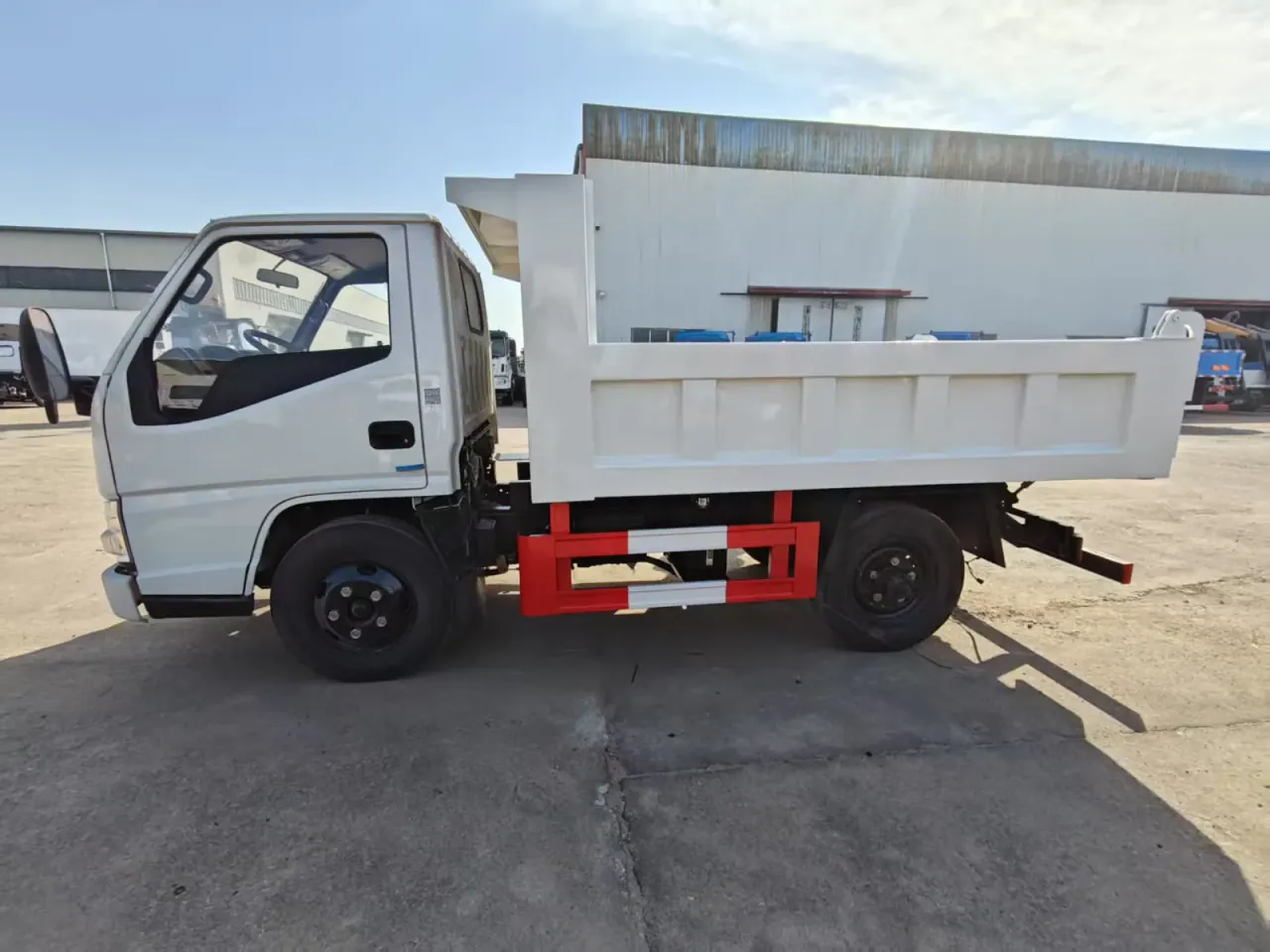

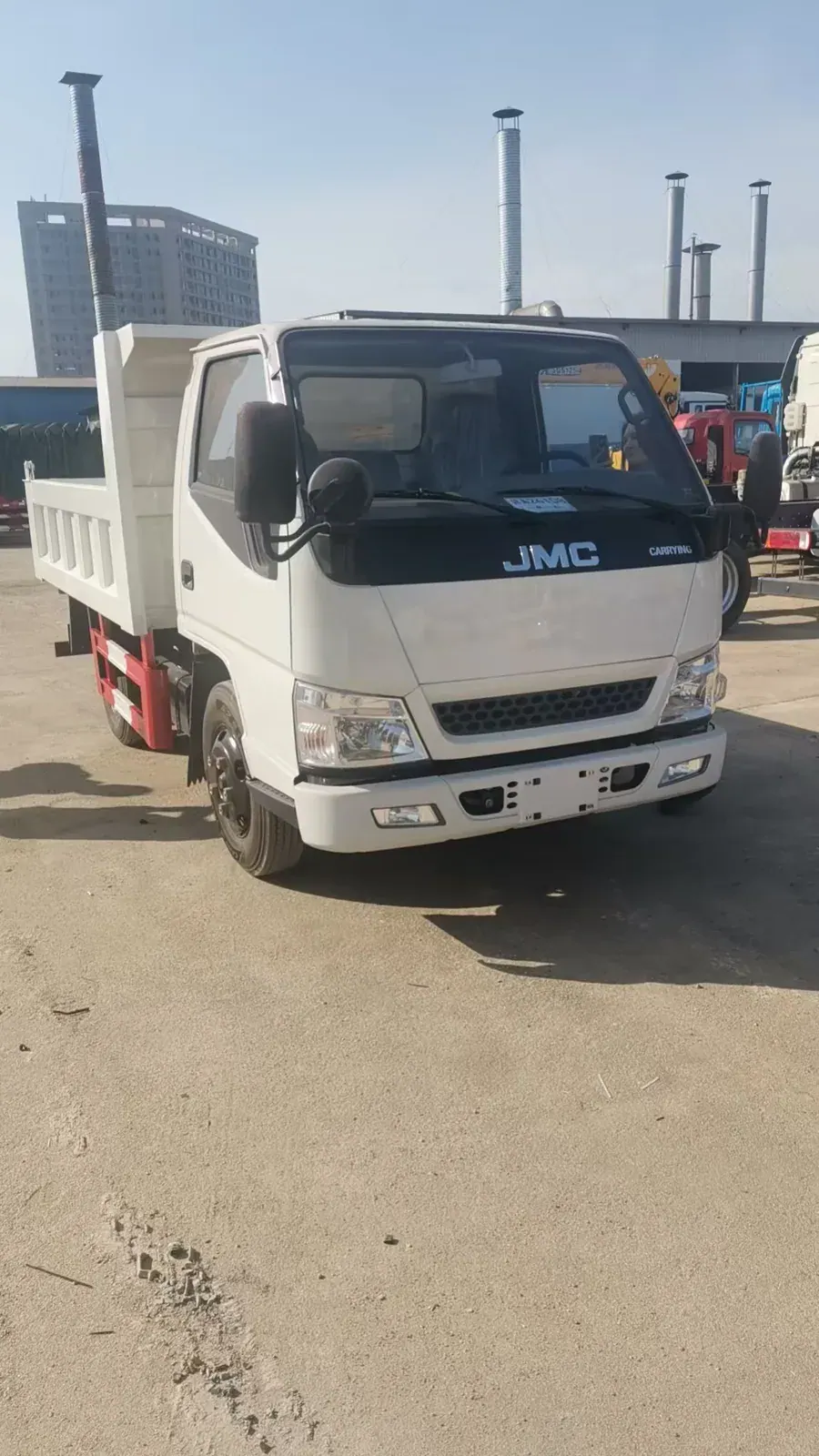

The reference views show the cab, side profile and the relation between the body and chassis. For another order, that layout is the beginning of the discussion; the material and load to be carried determine the body requirement.

Tell us what the truck will carry and whether the material is normally dry, wet, loose or mixed. Include the expected weight of a normal load and the equipment used to fill the body.

Body volume and payload are different checks. A body filled with a denser material can reach the vehicle’s mass limit before all the physical space is used. Ask for the proposed body volume and the completed-vehicle cargo allowance to be stated separately.

The body floor, sides and tailgate should be selected for the material and loading method. A general description such as “construction material” leaves important details unresolved; photographs of a typical load or a written material description are more useful.

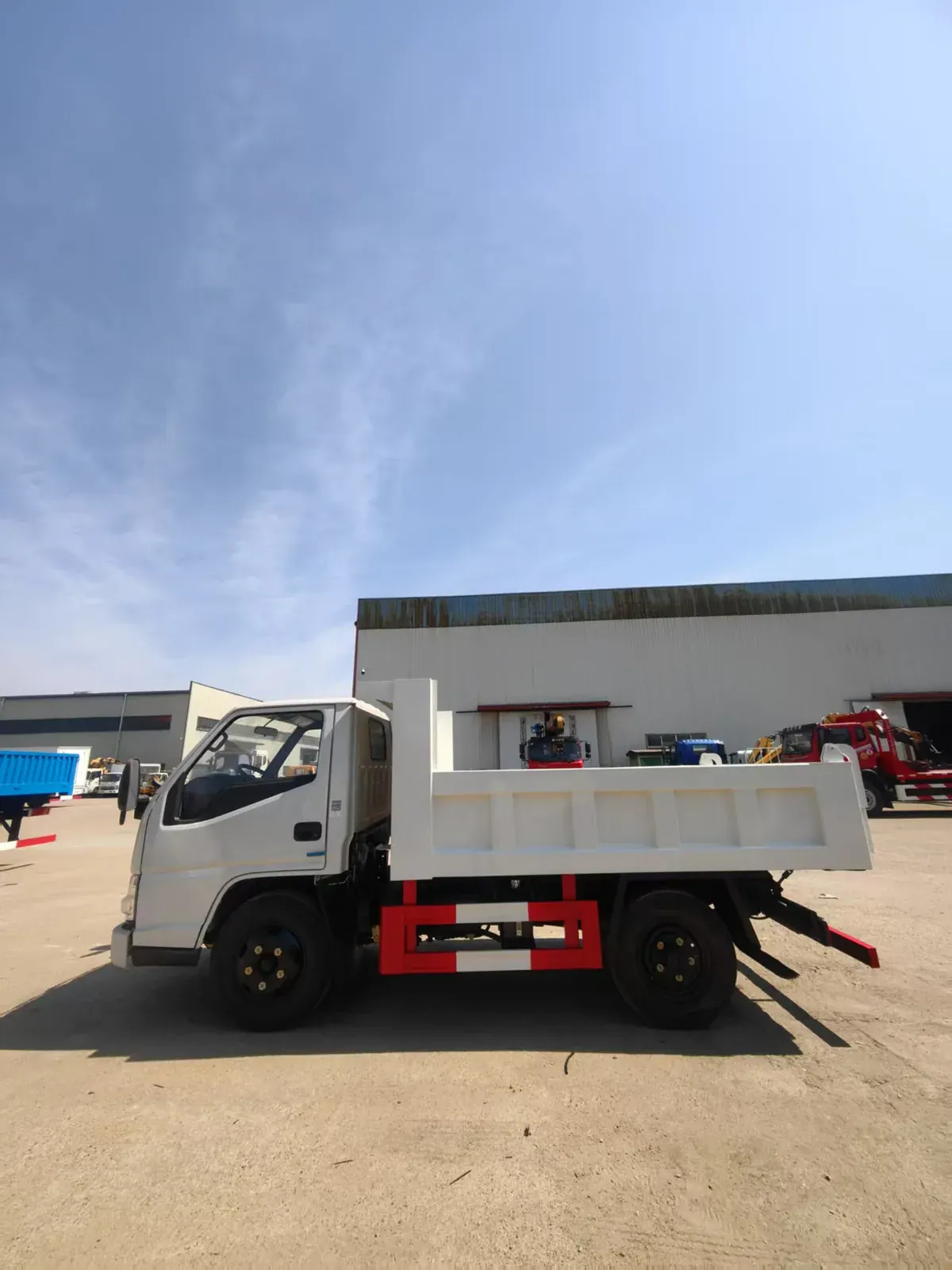

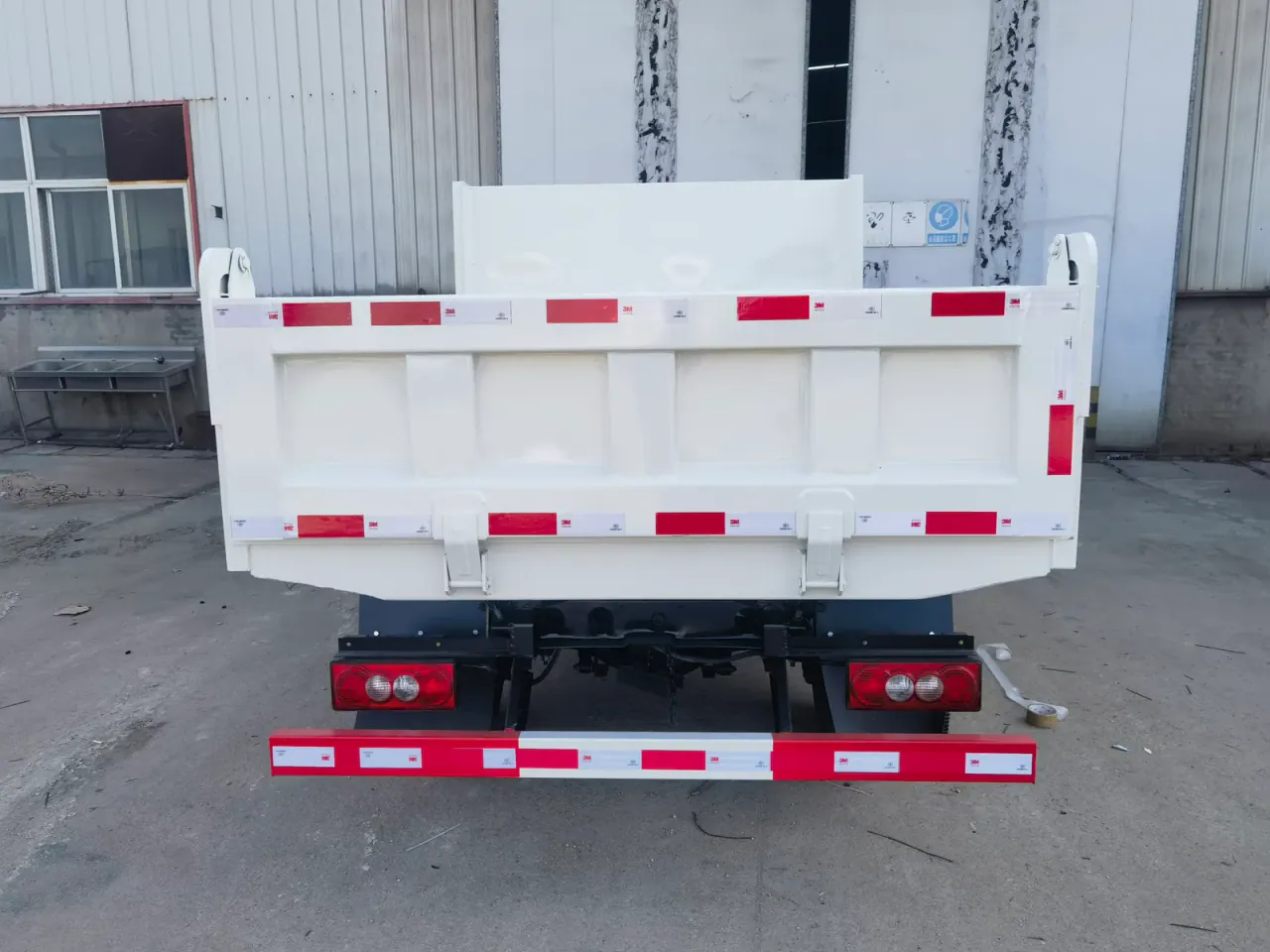

The rear and raised-body reference views help show where the tailgate, hinges and lifting equipment sit. They are configuration views for discussion, rather than a record of a load test for the Panama truck.

For a proposed vehicle, ask for the hoist, mounting and controls to be described in the specification. The body, hoist and chassis need to be reviewed together for the intended material and duty.

Include the operating instructions, body support provisions and inspection requirements in the handover scope. A raised-body photograph shows the layout; the approved instructions and completed installation define how it can be used and maintained.

Describe the loading point, travel route and discharge area, including surface conditions and restrictions on access or overall size. These details help the supplier review the chassis and body proposal.

Ask for the completed gross mass and axle-load calculation at the proposed load. The body and hydraulic equipment form part of the vehicle’s own mass, and their position affects the remaining carrying allowance.

Changes made late in an order, such as a different body length or heavier floor, should be reflected in that review. The original chassis figure alone does not describe the completed dump truck.

For more detail, see Special-vehicle limits: GVW, axle load, wheelbase and body length.

For a JMC dump-truck quotation, list the chassis, body construction, hoist, controls and loose equipment separately. Ask what is included in the inspection and shipping scope, and have substitutions confirmed in writing.

Send us the material, loading method, required quantity and destination with that brief. We can discuss the configuration around the job, rather than selecting body dimensions from a similar truck photograph.
