Planning depot charging for commercial electric vehicles

Start with the energy each fleet vehicle must recover during its dwell time. Match vehicle charging limits and the connector to site capacity, scheduling, commissioning and backup.

Charging capacity is a complete-system question
  • 01Vehicle limits and charging compatibility
  • 02Site supply and simultaneous fleet demand
  • 03Available dwell and backup arrangements

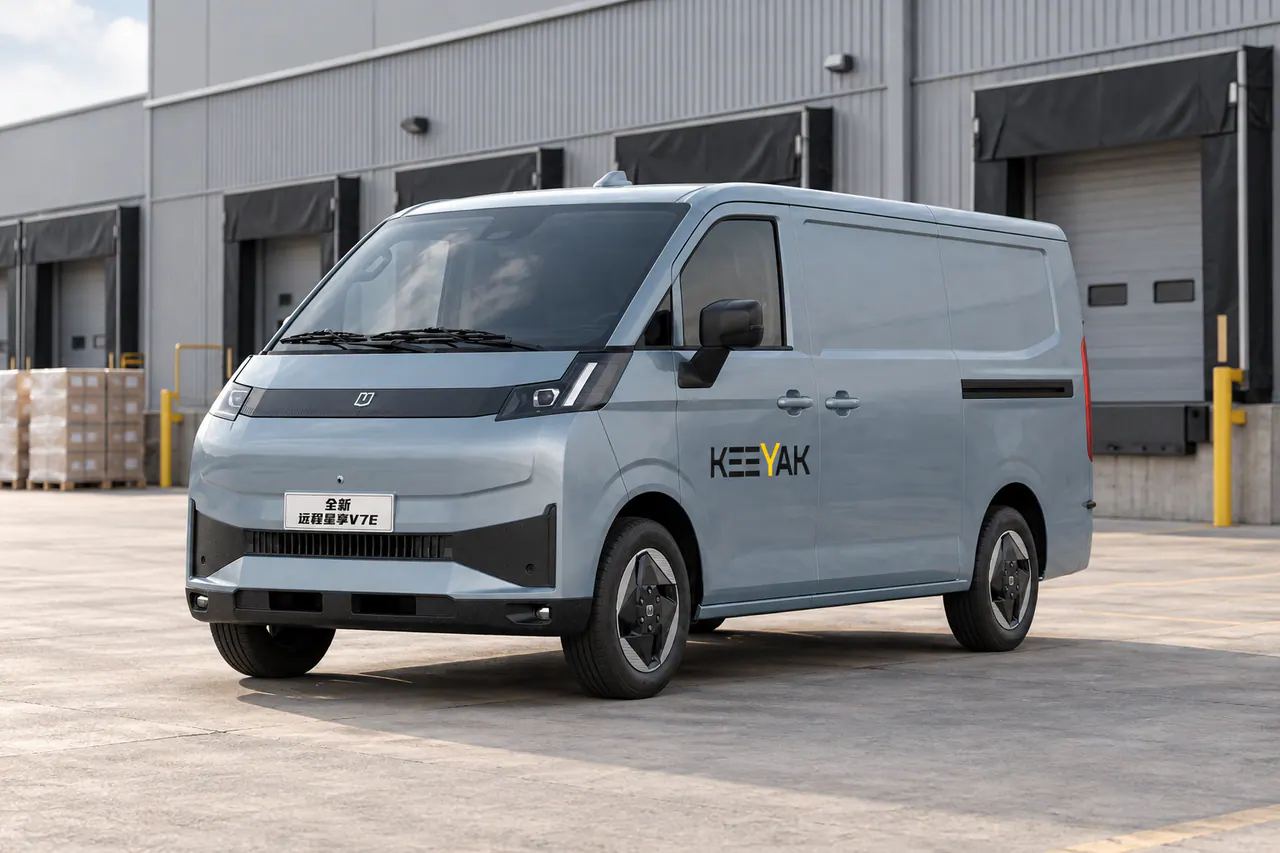

View the reference imageGray and black electric commercial van viewed from the front left

Gray and black electric commercial van viewed from the front left

Work backward from the next required departure

For each truck, record when it returns, the energy it needs to recover and when it must leave again. Include time lost to parking, queues and operating tasks. The useful charging window may be shorter than the time between shifts.

Vehicle charge limits, charger behavior and site supply jointly determine what can be delivered. A higher charger nameplate rating provides no benefit when another part of the installation limits power. Connector fit is only one compatibility check.

How much energy must the depot supply overnight?

Build a charging schedule from arrival time, battery state of charge, next-shift energy and departure time for each electric van or truck. Charging efficiency and charging losses affect the electricity required from the supply. A simple energy divided by time calculation gives an average power requirement, not a guarantee that every battery accepts that power throughout the session.

Compare AC charging and DC fast charging with the onboard charger and the vehicle's charge curve. Ask the utility and qualified electrical designer to assess site power capacity, grid connection and transformer capacity. Electricity tariff and demand charges depend on the location and supply agreement; retain them as verified inputs or explicit assumptions.

Verify the connector and a workable fallback

A CCS or GB/T label is a starting point for charger compatibility, not complete proof. Confirm the connector version, voltage range, charging communication and the exact vehicle/charger pairing. Fleet charging infrastructure also needs cable reach, vehicle parking layout and access for maintenance and emergency response.

Specify load management, smart charging and charging software only where they support the actual departure schedule. Review charger availability, a fault-reporting contact and backup charging arrangements. Commercial EV charging acceptance should include charger commissioning and an agreed vehicle charging demonstration before the fleet depends on the installation.

Test the fleet schedule against the site limit

Overlapping returns and shared power can change the result as the fleet grows. DOE guidance provides a planning framework, while local electrical requirements, utility conditions and the selected equipment govern the installation.

Scroll horizontally to view all columns.

Test the fleet schedule against the site limit
DecisionWhat to establishCondition or limit
Energy and dwellCalculate recovery need within the available parking window.Charger nameplate power is not delivered energy at all times.
InteroperabilityVerify connector, protocol, vehicle limit and charger operation together.Physical connector fit alone does not prove successful charging.
Site capacityModel simultaneous demand and managed-charging rules.Adding charger ratings can exceed the real site and utility limit.
OperationsDesign parking, cable reach, access, fault response and backup.A powered charger is not a complete fleet-ready charging process.

Commission the complete vehicle and charger combination

Request a site plan covering demand management, parking, cable access, ownership and fault support. Verify charging during the intended dwell period and define the response to an unavailable charger before relying on it for dispatch.

Information to prepare for this review
  • Energy to recover per vehicle and shift
  • Arrival, departure and dwell windows
  • Vehicle charge-port and maximum charge data
  • Charger interface, power and communication options
  • Site electrical capacity and utility constraints
  • Parking, cable, safety, commissioning and backup plan
Records to request and keep
  • Per-vehicle energy and dwell schedule
  • Vehicle and charger interoperability confirmation
  • Qualified electrical load and site design
  • Commissioning, fault-response and backup record
Common mistakes and what to check instead
  • Buying the highest-power charger: Match energy, dwell, vehicle acceptance and site capacity.
  • Counting all overnight hours as charging time: Use real arrival, parking, queue and departure windows.
  • Skipping interoperability commissioning: Test the selected vehicle, cable, charger, software and fault reporting together.

Buyer questions and practical limits

Does every electric truck need a fast charger?
  • Choose power from the energy needed and the available dwell time, subject to vehicle and site limits. Some predictable depot duties can use lower-power charging.
Can a plug adaptor establish compatibility?
  • A mechanical connection does not establish electrical or communication compatibility. Obtain confirmation for the exact vehicle, charger and approved connection arrangement.

Scope of this guide

This guide does not design an electrical installation or estimate a utility tariff.

Qualified electrical professionals, utilities and local codes control the depot.

Do not energize or operate uncommissioned, damaged, incompatible or improperly protected charging equipment.

Sources and applicability

KEEYAK buying process

Explains the steps from describing the job and comparing quotations to configuration approval and inspection.

Electric Vehicle family

Defines the relevant product family and published configuration boundaries. Project-specific ratings require the selected OEM documents.

U.S. DOE fleet electrification guide

Primary public guidance supporting route, dwell-time, charging-plan, procurement and infrastructure inputs. U.S. programs and examples are not global requirements.

UNECE Regulation No. 100 Rev.3

Primary international regulation reference for electric-powertrain and rechargeable-energy-storage safety where adopted. Applicability and approval status must be confirmed for the vehicle and destination.
