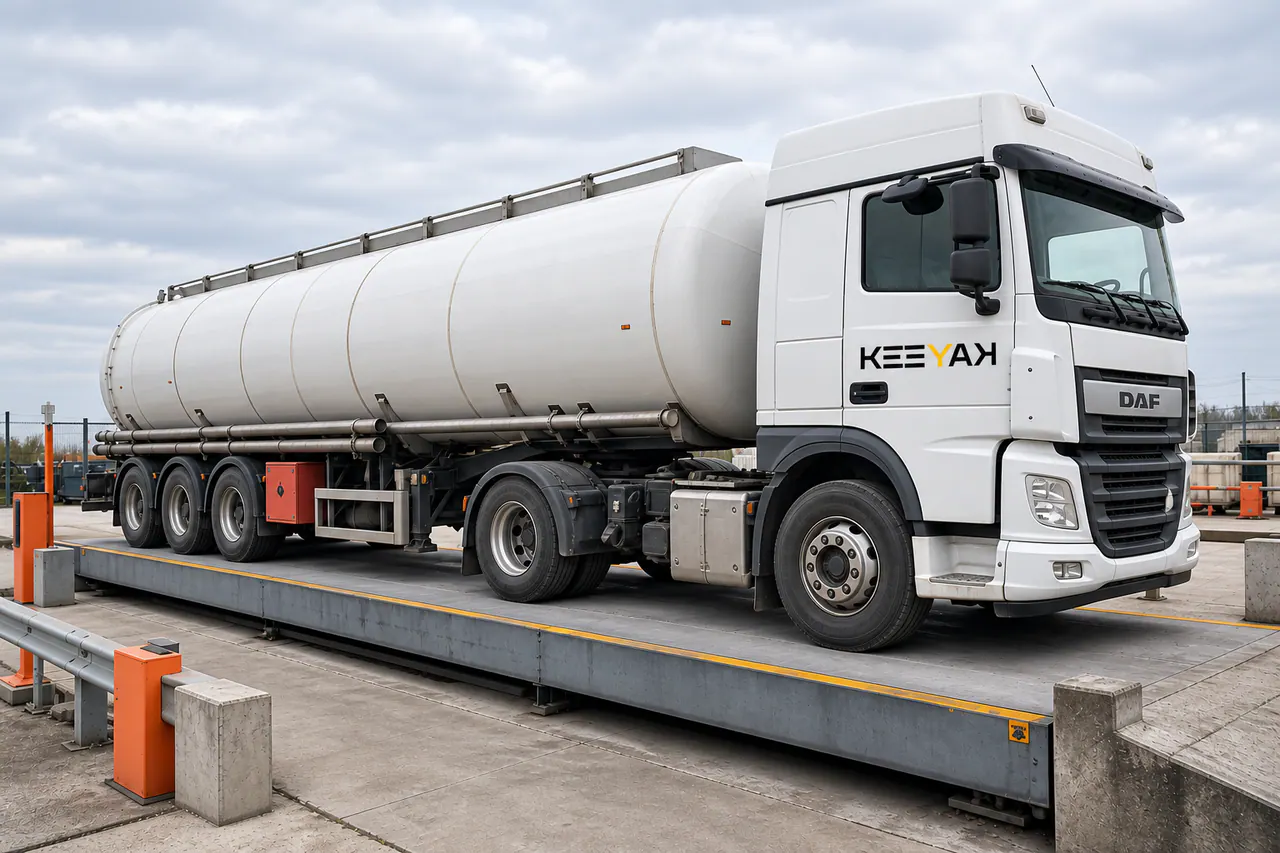

A litre figure describes space, not the permitted carried mass
A quotation should distinguish nominal or geometric volume, usable operating volume and carried mass. The fuel mass depends on the permitted fill and a documented product density, including the condition to which that density applies.
Then account for the completed truck: tank, subframe, piping, pump, meter, people and options. Bare chassis mass leaves out much of that equipment. The liquid and equipment positions also affect the axles, including when some compartments have been discharged.
Follow the volume calculation through to each axle
The legal fill can be below the nominal tank volume. Gross-mass compliance alone cannot settle the loading plan because partial-compartment cases may distribute the remaining mass differently. Ask for the usable-volume basis and completed-vehicle calculations together.
Scroll horizontally to view all columns.
| Decision | What to establish | Condition or limit |
|---|---|---|
| Volume basis | Separate nominal, geometric and usable volume. | The terms are not interchangeable without definitions. |
| Product mass | Apply the documented density basis to usable volume. | Different products or temperatures can change mass. |
| Completed tare | Include tank, subframe, piping, pump, meter, crew and options. | Bare chassis mass is not completed tare. |
| Axle reactions | Check each load case and compartment condition. | Gross mass compliance does not prove axle compliance. |
Convert requested liquid volume to product mass
A volume request must be converted using the defined product density before it can be checked against legal payload.
The requested 16 m³ cannot be accepted on the stated mass inputs. The final permitted fill can be lower after compartment, thermal, ullage and destination requirements are applied.
Scroll horizontally to view all columns.
| Step | Calculation or condition | Result |
|---|---|---|
| Requested product mass | 16 × 0.84 | 13.44 t |
| Preliminary excess | 13.44 − 12.8 | 0.64 t over the stated payload |
| Payload-limited volume | 12.8 ÷ 0.84 | 15.24 m³ before operating allowances |
- Requested liquid volume: 16 m³
- Project density assumption: 0.84 t/m³ at the stated condition
- Available legal payload: 12.8 t before product
Hypothetical numbers only. Use the controlled product density, chassis calculation, tank design and applicable authority requirements.
Identify the material before applying a fuel-tanker calculation
A request for a flammable truck is not enough to choose a fuel tanker. PHMSA's hazard chart separates flammable gas, liquid and solid categories. That distinction illustrates the ambiguity; its U.S. chart is general guidance and cannot determine destination compliance or which tank specification your material needs. PHMSA DOT Chart 17: hazardous materials markings, labeling and placarding
For this guide, identify the liquid fuel and the proposed tank service before using volume and density to calculate carried mass. Give the supplier the exact product identity and its current safety data sheet. Have the responsible shipper or dangerous-goods specialist confirm the transport classification and destination requirements. Bulk gas, packaged solids and other chemical cargo need their own equipment review.
- Record the product identity, intended service and density with its temperature basis.
- Confirm transport classification, packaging or tank requirements and destination with the responsible specialist.
- Require compatibility confirmation for the tank, seals, valves and transfer equipment actually offered.
- Apply the agreed fill limit and loading sequence to the completed-vehicle mass and axle calculation.
Keep the product identity with every loading calculation
Send the exact fuel and density basis, the required compartments and the intended unloading sequence. Require the supplier to reconcile completed mass, axle cases and destination filling limits before confirming capacity. A larger nominal tank does not answer those questions.
Information to prepare for this review
- Nominal and usable tank volume definitions
- Product identity and density basis
- Completed chassis and tank-system tare
- Gross and individual axle limits
- Compartment and equipment layout
- Destination filling and vehicle requirements
Records to request and keep
- Tank volume definition and drawing
- Product density source and condition
- Completed-vehicle tare and axle calculation
- Destination legal and filling requirements
Common mistakes and what to check instead
- Converting liters directly to payload without density: Use the documented product and condition.
- Using bare chassis curb mass: Use completed tare with all installed equipment.
- Checking only GVW: Check individual axle reactions and partial-compartment cases.
Scope of this guide
This guide does not provide legal payload for a specific vehicle.
Product properties and destination rules require authoritative current inputs.
Do not approve capacity until completed mass, axle loads and usable-volume rules are reconciled.
