Options being compared and the decision they affect
Useful for: Water delivery and construction fleets choosing a tank material for a defined water service and operating region
Tank shell material is only one part of the wetted system. Welds, lining, manways, vents, pumps, hoses, seals and valves can control compatibility and cleaning.
Compare two complete compliant designs on the same usable volume, water class, compartments, fittings and acceptance basis. Generic material claims do not establish the finished tank result.
Comparison inputs
Normalize these operating and configuration inputs before comparing vehicle types or systems:
- 01Potable, non-potable or process-water duty
- 02Water chemistry and cleaning agents
- 03Required material grade, coating or lining
- 04Tank geometry, usable volume and baffles
- 05Payload target and completed tare
- 06Local welding, coating, inspection and repair capability
Option comparison matrix
Read across every row before selecting an option. No single advantage should override a failed operating or evidence condition.
Scroll horizontally to view all columns.
| Decision factor | What to choose or check | Limit or condition |
|---|---|---|
| Compatibility | Approve every wetted material for the defined water and cleaning process. | Stainless steel is not one grade and carbon steel is not one coating system. |
| Mass | Compare finished tank systems at equal usable duty. | Material density alone does not state completed tare or payload. |
| Fabrication | Match welding, lining and finish controls to the selected design. | A material certificate does not verify finished welds or coating. |
| Lifecycle service | Confirm inspection, repair materials and competent local support. | A repair method for one material may be unsuitable for the other. |
From comparable inputs to a controlled choice
A useful comparison holds the mission and project conditions constant, then tests each option against the same evidence requirements.
- 01Frame the comparison

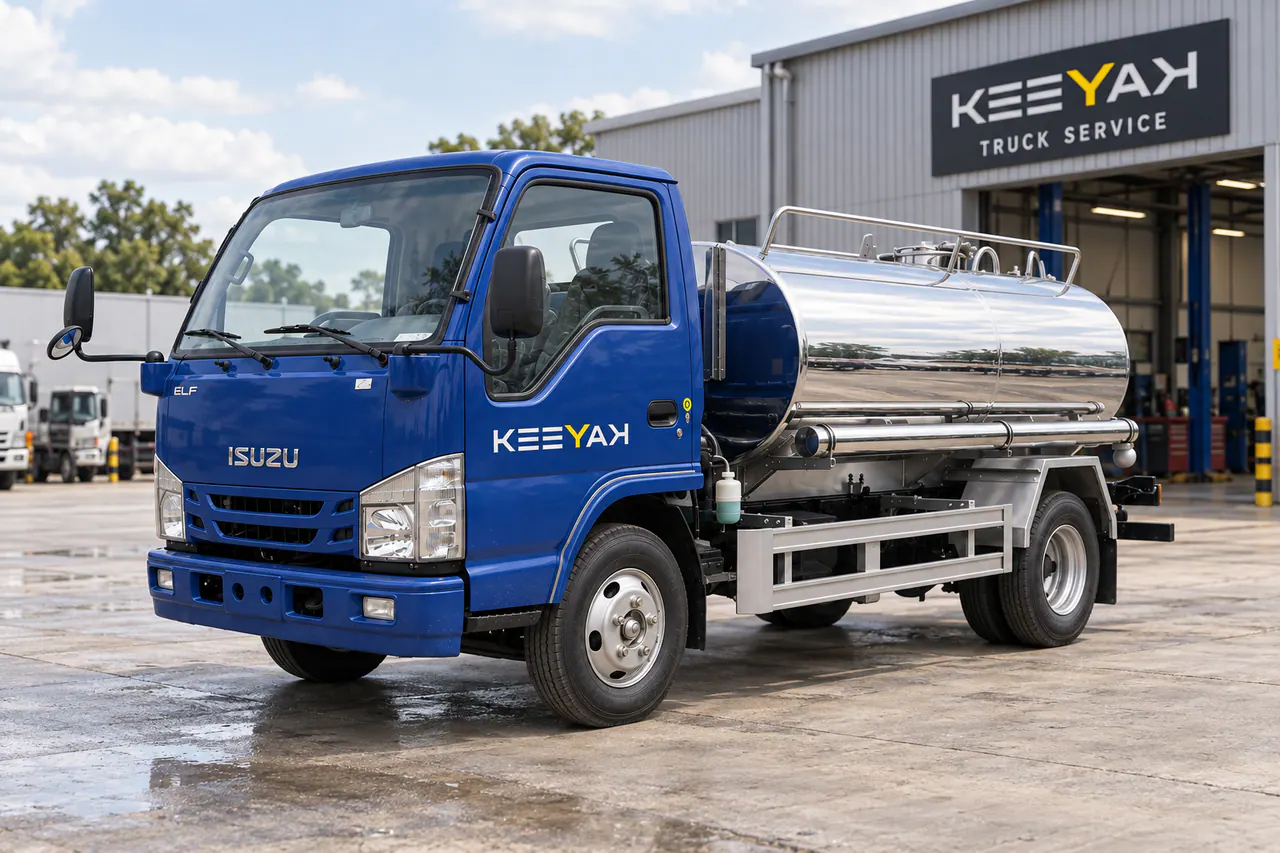

Stainless-steel versus carbon-steel water tanker comparison
- 02Normalize buyer inputs
Potable, non-potable or process-water duty; Water chemistry and cleaning agents
- 03Compare like for like
Compatibility and Mass must both pass.
- 04Confirm the chosen evidence
Water and cleaning compatibility schedule; Material, weld, coating or lining specification
Comparison evidence checklist
Ask for evidence that is traceable to the selected model, configuration, vehicle or project scope. A record from another project is context, not verification.
- Water and cleaning compatibility schedule
- Material, weld, coating or lining specification
- Completed tare, payload and axle calculation
- Finished-tank inspection and repair documentation
Comparison traps
Equating stainless steel with potable approval
Better comparison: Verify grade, finish, fittings, cleaning and local water requirements.
Comparing raw material price only
Better comparison: Compare complete tank fabrication, payload and lifecycle service.
Ignoring lining repair
Better comparison: Define inspection, preparation, approved repair materials and cure evidence.
Limitations
- This comparison does not select a material grade, lining or corrosion allowance.
- Qualified tank design and local water requirements control the final choice.
- Reject the material decision when service compatibility, fabrication quality, repair method or inspection basis is unresolved.
