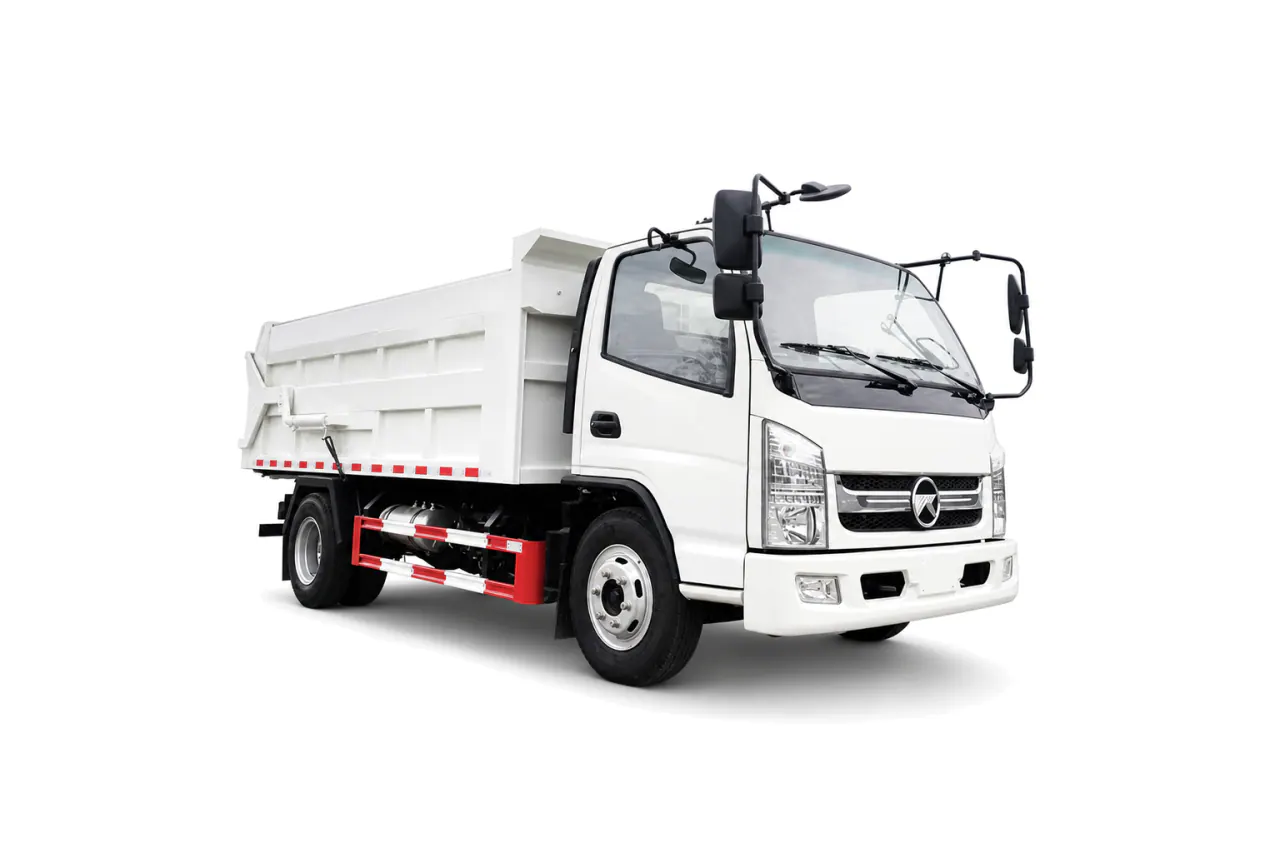

Dump-body garbage truck, Front left view

Dump-body garbage truck

Cargo Box Effective Volume
3–30 m³
Rated Loading Capacity
2–25 t
Hydraulic Working Pressure
16–28 MPa
Cargo Box Material
Q235/Q345
Thickness
Bottom: 4–8 mm; sides: 3–5 mm
Lowering Time
10–25 s
Request this configuration

Reference configuration. Final values are confirmed for the selected chassis, model and destination.

About the dump-body garbage truck

The KEEYAK Dump-Body Garbage Truck carries compatible municipal waste in a tipping body. Waste is loaded manually or by separate equipment unless a loading attachment is specified; the hydraulic hoist raises the body for discharge. The listed body-volume and loading-capacity ranges describe configuration options, not one truck’s guaranteed payload.

It suits municipal cleanup crews, contractors, parks, markets, and facilities handling compatible low-density waste or bulky debris. Select body construction and side height for the waste density. The cover and tailgate must satisfy containment rules. Check tipping angle against disposal-site clearance, with the load kept within chassis limits.

Line drawing of a tipper truck with a high-sided dump body.

Typical applications

  1. Park debris collection

    Crews load leaves, branches, litter bags, and approved maintenance debris, then tip the load at a composting, transfer, or disposal point.

  2. Market cleanup transport

    The tipper garbage truck removes packaged refuse and compatible dry residues from market districts where simple manual or machine loading is practical.

  3. Bulky municipal waste

    Public works teams carry furniture, pruning waste, and other accepted bulky items that do not suit conventional bin-lifter collection systems.

  4. Facility grounds maintenance

    Factories, campuses, and estates use the open-body format for controlled internal collection of compatible waste, landscaping debris, and cleanup materials.

Before you order

What work best suits the dump-body garbage truck?

A dump-body truck can suit compatible loose or bulky waste loaded by crews or separate equipment and discharged by tipping. It is useful where that simple handling method fits the route. Bin lifting, compaction and liquid-tight containment should not be assumed unless specifically ordered.
