Garbage truck body size: plan the collection round before the volume

Size a refuse compactor around collected waste, legal payload, bin interface and disposal time. Check catalog volume labels and packing assumptions before purchase.

Volume and mass can reach their limits at different times
  • 01Light bulky waste: available body space
  • 02Dense or wet waste: permitted carried mass
  • 03Completed vehicle: axle loads and street access

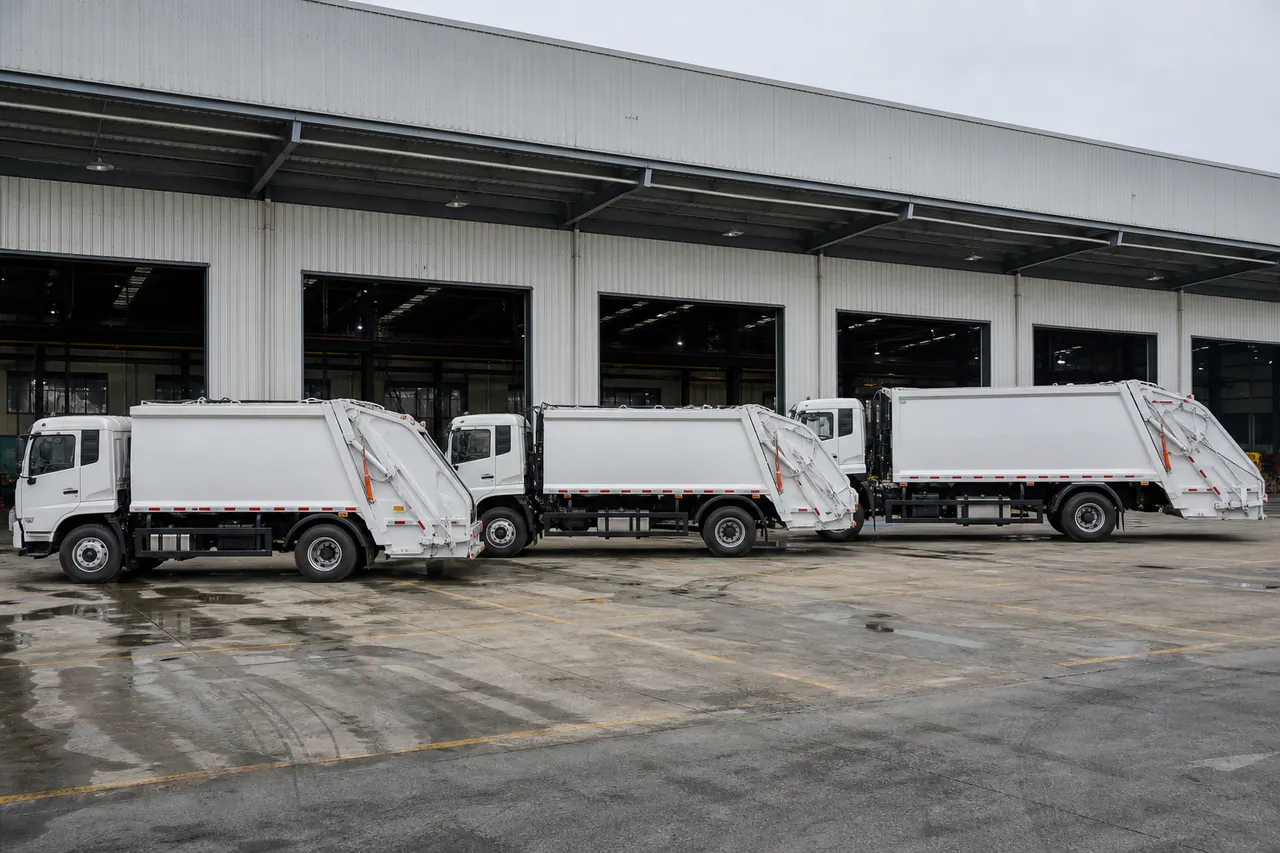

View the reference imageRefuse truck body with collection-route and volume-planning references

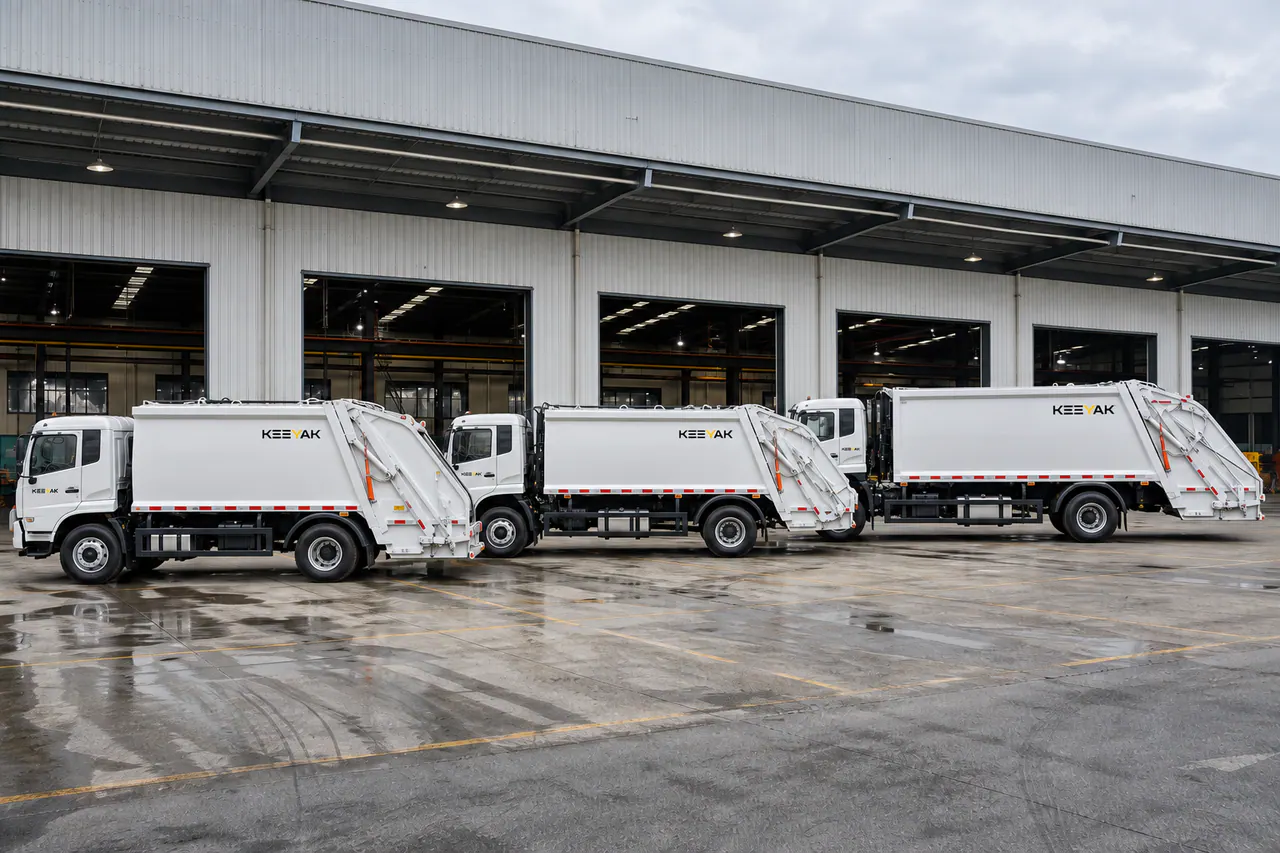

Refuse truck body with collection-route and volume-planning references

Collection records reveal whether volume or mass is the constraint

Bulky packaging and dense wet waste can reach different limits in the same body. Collection records should separate those streams and show quantity, mass, containers and occupied space. A single assumed density obscures the reason the current truck fills up or reaches its permitted load.

An existing contractor's representative weighing and collection records provide a basis for the size comparison. A new route will need stated assumptions and an agreed way to check them. In either case, the estimate should identify the waste and collection pattern it covers.

The KEEYAK refuse compactor page distinguishes compartment volume from hopper capacity, listed at 1.5 to 3.5 m³. The hopper is part of the loading and packing arrangement. It should not be added to body volume as if all of that space were an extra permitted road load.

Scroll horizontally to view all columns.

Identify the constraint on a refuse-collection round
What limits the round?Evidence from the routeSpecification to review
Body fills before the load limitWaste composition and occupied volumeUsable body allowance and packing conditions
Payload is reached with space remainingWeighing records and load distributionCompleted vehicle mass and each axle allowance
Disposal trips consume the shiftTravel, queueing and unloading recordsCarried load per trip and realistic collection cycles
Collection stops take too longContainer types, access and crew processLifter interface, hopper and the agreed cycle definition

Keep compaction assumptions visible

KEEYAK's catalog reports a compression-ratio field of 1/3 to 1/2 without its definition. Do not convert it into a guaranteed collection multiplier. Ask how the ratio was measured, which waste it represents and whether it describes volumes before and after packing under comparable conditions.

Packing-cycle time, reloading time and discharge time should also be named separately. A fast unloaded mechanism cycle does not demonstrate the time to collect and dispose of a working load. The compaction-ratio guide explains the measurement issue without assigning a universal result to mixed waste.

The route supervisor can confirm which bins and pickup arrangements the crew actually uses, including the condition of the containers. A different lifter or loading interface may change work at each stop. Any resulting access or handling change belongs in the trial before old stop times are reused.

Assess the truck after the body is installed

Body, lifter, crew, fluids and equipment all contribute to completed mass. Compare the gross-mass calculation and the load on each axle at the intended waste positions. Extra nominal body space may leave less mass allowance or prevent the completed truck reaching collection streets.

Dennis Eagle's Olympus Mini provides a named compact-body example for the comparison below. Its dimensions and chassis family show why body volume needs to be assessed with the installation; they remain Dennis Eagle specifications, not figures for a KEEYAK offer.

Use your collection figures in the worked checks below. A calculated volume or trip count is only as useful as its waste, payload and timing assumptions.

Define a collection trial and a discharge check

A representative collection trial needs the intended waste, containers and permitted loading, with route conditions and the information to record agreed beforehand. Access, packing behavior, leakage or cleaning checks and discharge compatibility belong in that scope. The receiving facility also needs to confirm the unloading arrangement.

Comparable offers name the chassis, body, bin lifter, controls, equipment, documentation and spare-parts supply. An unresolved required safety function or container interface remains an acceptance hold. If the collection method itself is still undecided, the municipal collection guide addresses that earlier choice.

Estimate loose route volume, then check mass and cycles

For this hypothetical route, 120 stops at 0.12 m³ per stop give 14.4 m³ of loose waste. Applying the assumed 3:1 volume reduction gives 4.8 m³ for one collection cycle.

Check the measured waste mass against the available waste payload, and each loaded axle weight against its own limit. Use measured compacted-waste density to relate waste mass to the compacted body space required. Include reserve and liquid assumptions, discharge access and disposal-trip time in the route estimate.

Scroll horizontally to view all columns.

Estimate loose route volume, then check mass and cycles
StepCalculation or conditionResult
Loose route volume120 × 0.1214.4 m³
Illustrative compacted volume14.4 ÷ 34.8 m³
Mass checkWaste mass ≤ available waste payload; each loaded axle weight ≤ its own limitCheck payload and axle loads separately
  • Collection points: 120 stops
  • Average loose volume per stop: 0.12 m³
  • Assumed volume reduction: 3:1 for the defined waste sample

The 3:1 reduction is an assumption for this example, not a universal compaction ratio or a KEEYAK performance claim. Use measured evidence for the intended waste stream in a real route estimate.

Check whether the route fits into the shift

Use a time log from representative collection days. Separate travel between stops, bin handling and packing, travel to the disposal point, queueing, discharge and the return journey. A body that carries the whole route by volume may still be too slow to finish it in the available shift.

For each candidate size, estimate disposal trips from both usable body volume and permitted waste mass. Use whichever constraint is reached first, and allow for peak days rather than the average alone. Ask for cycle-time evidence for the selected lifter and compactor under a stated load; a catalog hydraulic pressure does not tell you how long a stop takes.

What changes between an 8 m³ and a 9.8 m³ body?

Dennis Eagle lists 6, 7 and 8 m³ bodies for the Olympus Mini and three larger Olympus Midi variants. The Mini body is 2,000 mm wide. Dennis Eagle Olympus Mini: body and chassis specifications Dennis Eagle Olympus Midi: named body variants and chassis range

Moving from an 8 m³ Mini to the 9.8 m³ OL-MIDI 10 adds 1.8 m³ of nominal body space, or 22.5%. Whether that saves a disposal trip depends on the waste mass, usable volume and time needed to complete the round.

Gross vehicle weight (GVW) includes the vehicle and its load. Dennis Eagle lists the Mini and Midi family chassis ranges below; the Midi family range does not establish compatibility of every variant with every chassis. Calculate waste payload from the selected chassis limit and the mass of the completed vehicle.

  • Compare representative route samples

    Measure loose volume, mass and waste composition over representative days, including peak loads. State any common compaction assumption used for an initial size comparison, then ask the supplier to support the result for each proposed body and packing system. Confirm usable body volume and the filling allowance separately from hopper volume; include the hopper in carried capacity only where the manufacturer permits it.

  • Calculate the waste payload

    Ask the supplier for the ready-to-work vehicle mass, including the installed body, lifter, crew, fuel, other fluids and carried equipment. Subtract that mass from the permitted gross vehicle mass. Deduct any items omitted from the weighing, then check each axle for the proposed load positions. Repeat the calculation if the body or lifter changes.

  • Check which limit is reached first

    Multiply usable body volume by the measured compacted-waste density. Compare that mass with the waste payload from the vehicle-weight and axle checks; use the lower value to estimate the waste mass per load. If the 8 m³ body already carries the planned round within those limits, extra body space alone will not remove a disposal trip. Check the stop sequence and disposal journey against the available shift.

Scroll horizontally to view all columns.

Dennis Eagle body options and chassis gross weight ranges
Manufacturer bodyBody volumeChassis GVW range
Dennis Eagle Olympus Mini6, 7 or 8 m³7.5 to 12 tonnes
Dennis Eagle OL-MIDI 109.8 m³Midi family: 12 to 16 tonnes; confirm the selected variant
Dennis Eagle OL-MIDI 1110.8 m³Midi family: 12 to 16 tonnes; confirm the selected variant
Dennis Eagle OL-MIDI 1211.8 m³Midi family: 12 to 16 tonnes; confirm the selected variant

Dennis Eagle Olympus Mini: body and chassis specifications Dennis Eagle Olympus Midi: named body variants and chassis range

These are Dennis Eagle manufacturer examples. For a KEEYAK proposal, request the selected body drawing, compatible chassis, usable storage volume and axle-load calculation.

Refuse compactor questions

  • Is there a compactor in a garbage truck?

    A refuse compactor truck has packing equipment for the waste and loading arrangement it is designed to handle. Other garbage-truck types use different collection or container systems. Confirm the actual mechanism and waste compatibility instead of selecting from the vehicle name alone.

  • What determines the cost of a garbage compactor truck?

    Body size and the completed equipment package change what is being quoted. Compare the chassis, lifter interface, packing equipment, controls and inspection requirements together, including destination and delivery scope. A small-body quote and a larger completed-vehicle offer are different purchases.

  • Does a larger body always reduce disposal trips?

    Only when the additional usable space can be carried legally and filled with the route's waste within the shift. Where mass, street access or unloading time is the constraint, more nominal body volume may not improve the round.

Sources and applicability

Dennis Eagle Olympus Mini: body and chassis specifications

Dennis Eagle Olympus Mini reference: 6, 7 or 8 m³ bodies, 2,000 mm body width and a chassis gross vehicle weight range of 7.5 to 12 tonnes.

Olympus Mini: Specification, body dimensions, volume and gross vehicle weight

Sources checked:

Dennis Eagle Olympus Midi: named body variants and chassis range

Dennis Eagle Olympus Midi reference: OL-MIDI 10, 11 and 12 body volumes and the chassis gross vehicle weight range of 12 to 16 tonnes. Body and chassis compatibility must be checked for the selected variant.

Olympus Midi: Specification, Compact body sizes and Compact chassis range

Sources checked:

Garbage Truck family - KEEYAK configuration reference

KEEYAK catalog fields considered in this guide: body volume, hopper capacity, waste density, compaction ratio, axle load, bin lifter. Confirm the selected chassis, equipment and signed specification. Catalog options are not results from a vehicle test.

Sources checked:

Share collection records before selecting body volume

Send waste quantities and weighing records, container details, route access and disposal timings. Ask for the proposed body, completed payload and collection-cycle assumptions on one specification.
