What does a garbage truck compaction ratio mean?

Read a compaction ratio only after confirming its definition and measurement method. Waste type, payload and operating conditions determine how the figure applies.

A ratio needs a definition and a material
  • 01Loose volume and compacted volume
  • 02Waste composition and test method
  • 03Permitted mass checked separately

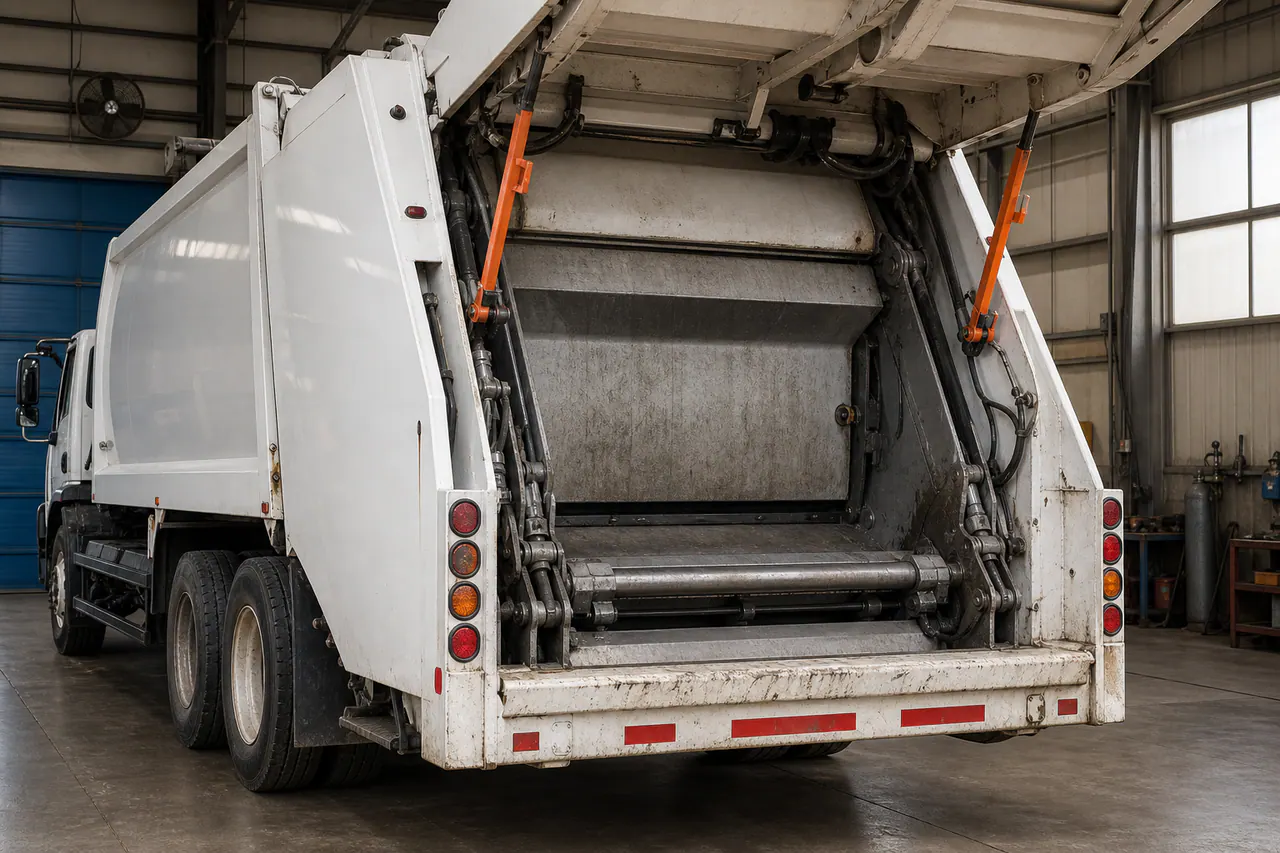

View the reference imageRefuse compactor body showing waste-loading and compaction planning

Refuse compactor body showing waste-loading and compaction planning

Ask what is above and below the dividing line

Read the supplier's definition before comparing compaction figures. Loose volume divided by compacted volume gives a loose-to-compacted ratio. Compacted volume divided by loose volume gives the fraction of the original volume remaining.

Moisture, composition, packaging and loading affect how waste compresses. A result obtained with one material cannot simply be assigned to another route. Keep the test conditions beside the ratio and use weighed route data when estimating what the truck can actually collect.

Separate the ratio from the collection-capacity claim

Compressing waste changes the volume it occupies, not the truck’s permitted mass. A body can reach its payload limit before a volume calculation suggests it is full. The useful comparison therefore needs the definition, material and measurement method as well as the vehicle limits.

Scroll horizontally to view all columns.

Separate the ratio from the collection-capacity claim
DecisionWhat to establishCondition or limit
DefinitionIdentify exactly what two quantities are compared.Different definitions cannot be compared directly.
MaterialMatch test waste to the intended stream.Mixed, wet and bulky waste behave differently.
MethodReview loading, cycle and measurement conditions.An unstated method makes the claim unverifiable.
Vehicle limitCheck payload and axle loads alongside volume.The payload limit may be reached before the body is full.

Calculate a ratio from hypothetical volumes

For this hypothetical calculation, assume 12 m³ of loose waste becomes 6 m³ after compaction. In a real test, both volumes must come from the same measured waste sample and method.

Dividing 12 by 6 gives a 2:1 loose-to-compacted ratio. The assumed values illustrate the calculation; they do not establish the result for another waste stream, moisture condition or loading practice.

Scroll horizontally to view all columns.

Calculate a ratio from hypothetical volumes
StepCalculation or conditionResult
Hypothetical ratio12 ÷ 62:1
Payload checkMeasured compacted mass ≤ completed-vehicle payloadRequired
Repeatability checkRepeat representative route samplesUse a range, not one headline figure
  • Assumed loose sample volume: 12 m³
  • Assumed compacted volume: 6 m³
  • Test record: Waste stream, moisture, loading method and date identified

Illustrative calculation only. Never use the example as a body rating or route promise. Preserve the test method and the legal mass limits.

What does one-third to one-half mean?

If the supplier defines the value as compacted volume divided by loose volume, one-third means the waste occupies one-third of its original volume, while one-half means half remains. Written as loose-to-compacted ratios, those same cases are 3:1 and 2:1. Confirm the definition before converting the notation.

This arithmetic does not establish how the truck performs with your waste. Request the test material and measurement record. Wet or dense waste can reach the payload limit well before a body-volume calculation suggests another load will fit.

Packing time and compaction ratio measure different things

The 2025 Heil DuraPack 5000 brochure lists a packing cycle of 16 to 18 seconds and "Reload Time" of 6 to 8 seconds, both with the fast cycle pump option. The brochure does not define the start and finish of its reload measurement. Heil DuraPack 5000 brochure

For the proposed truck, ask the supplier to time packing, reloading and discharge separately and state where each measurement starts and stops. Record the model, material, load, pump option, drive speed and test repetitions. Use those timings with the collection method, usable body volume and legal payload to plan the route.

Scroll horizontally to view all columns.

Comparable refuse collection requirements
RequirementBuyer inputRecord required
Collection methodBins, lifter interface, stop spacing and crew accessMatched lifter drawing and route review
CapacityWaste type, mass, density and collection scheduleUsable volume, completed mass and axle calculation
Cycle timePacking, reload or full dischargeTimed record for the selected model and conditions

Heil DuraPack 5000 brochure

Read the units beside a published compaction figure

The 2025 Heil DuraPack 5000 brochure lists "Compaction" as 1,000+ lb/yd³. Pounds per cubic yard measures compacted waste density. Calculating a volume ratio also requires the loose density of the same waste sample. Heil DuraPack 5000 brochure

The reference value of 1,000 lb/yd³ converts to approximately 593 kg/m³. The "+" remains part of the manufacturer's published figure. Use measurements with the waste you collect to establish a density for route planning.

  • Check whether the sample mass stays the same

    When the sample mass stays the same, the volume ratio equals compacted density divided by loose density. Use the same density units for both values. If liquid drains away or material is added or lost, record the mass before and after compaction and calculate the volume ratio from the measured volumes instead.

  • Ask for comparable test reports

    Ask each supplier to record the waste composition, moisture condition, packing settings, sample mass and volume before and after compaction. Use the same test requirements for each proposed configuration. Repeat representative samples and keep the individual results. Hydraulic pressure, cycle time and catalog density do not replace measured sample mass and volumes.

Request the test record behind the ratio

Ask for the waste description, loading and measurement conditions, and the quantities used in the calculation. Keep packing time, reload time and discharge time under their own definitions. If the supplier cannot establish the basis of a ratio, leave it out of the route-capacity estimate.

Information to prepare for this review
  • Supplier definition of the ratio
  • Waste stream and condition
  • Measurement or test method
  • Body volume and loading system
  • Completed-vehicle legal payload
  • Route sampling and operating cycle
Records to request and keep
  • Written compaction-ratio definition
  • Test material and condition record
  • Measurement and cycle description
  • Payload and axle-load calculation for intended waste
Common mistakes and what to check instead
  • Comparing two ratios with different definitions: Normalize the definition and method first.
  • Converting ratio directly into route payload: Model both mass and volume with route data.
  • Treating a test result as guaranteed daily performance: State the test conditions and operational variability.

Scope of this guide

No universal ratio applies to every waste stream.

This guide does not validate a supplier value without its test record.

Reject or narrow any claim whose definition, material or method cannot be established.

Sources and applicability

Heil DuraPack 5000 brochure

Heil DuraPack 5000 manufacturer reference figures. The starred cycle times use the fast cycle pump option; the brochure notes that performance varies with operating conditions. KEEYAK proposals require their own model and test records.

PDF page 4, Performance Specifications and adjacent performance caveat; starred packing and reload times use the fast cycle pump option
