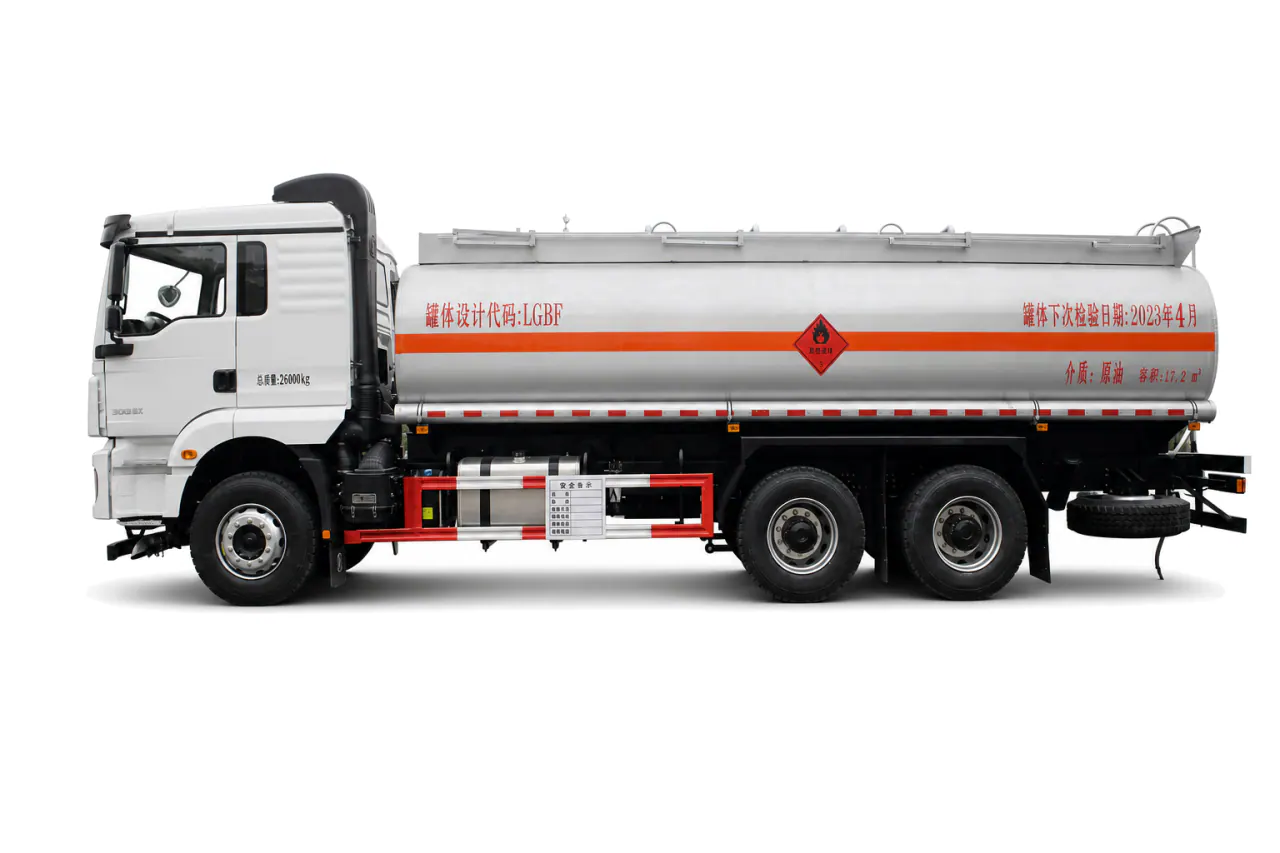

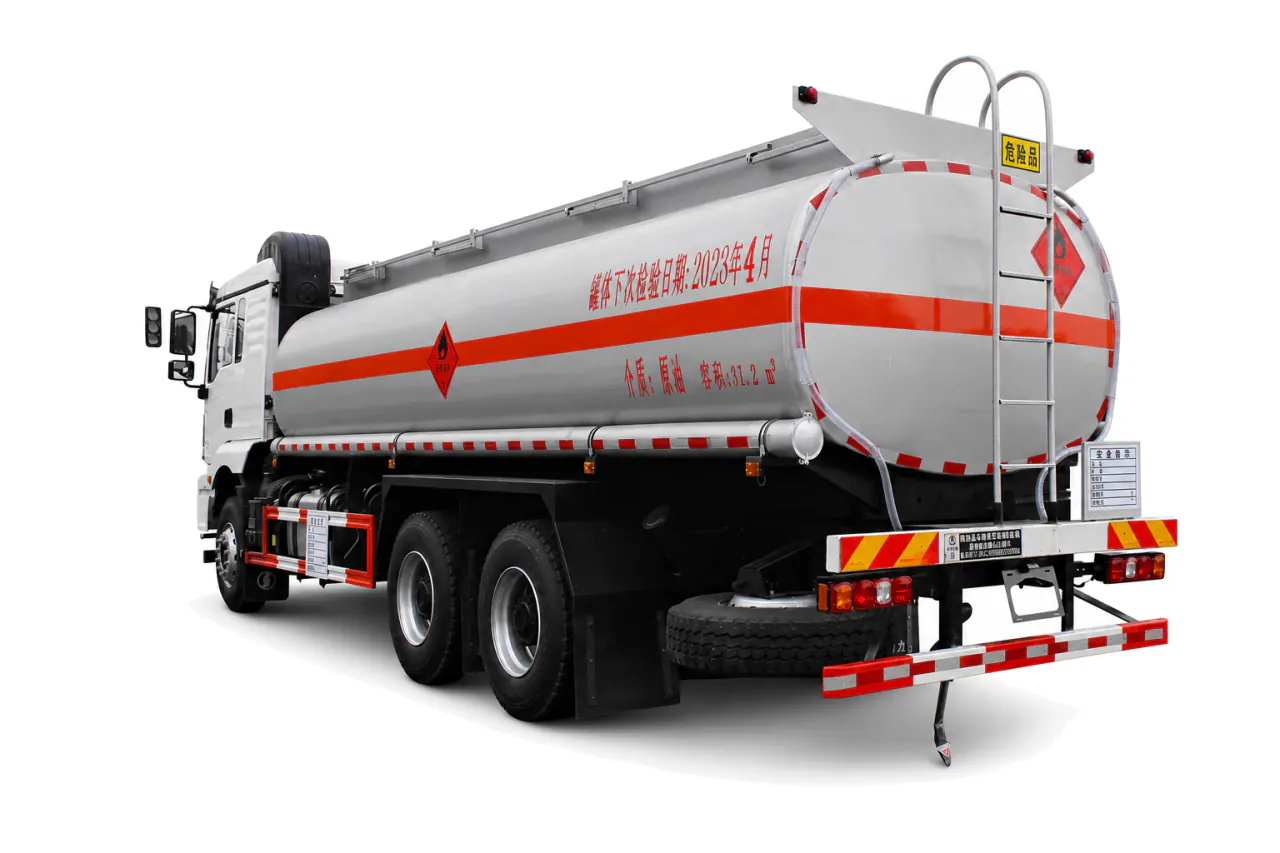

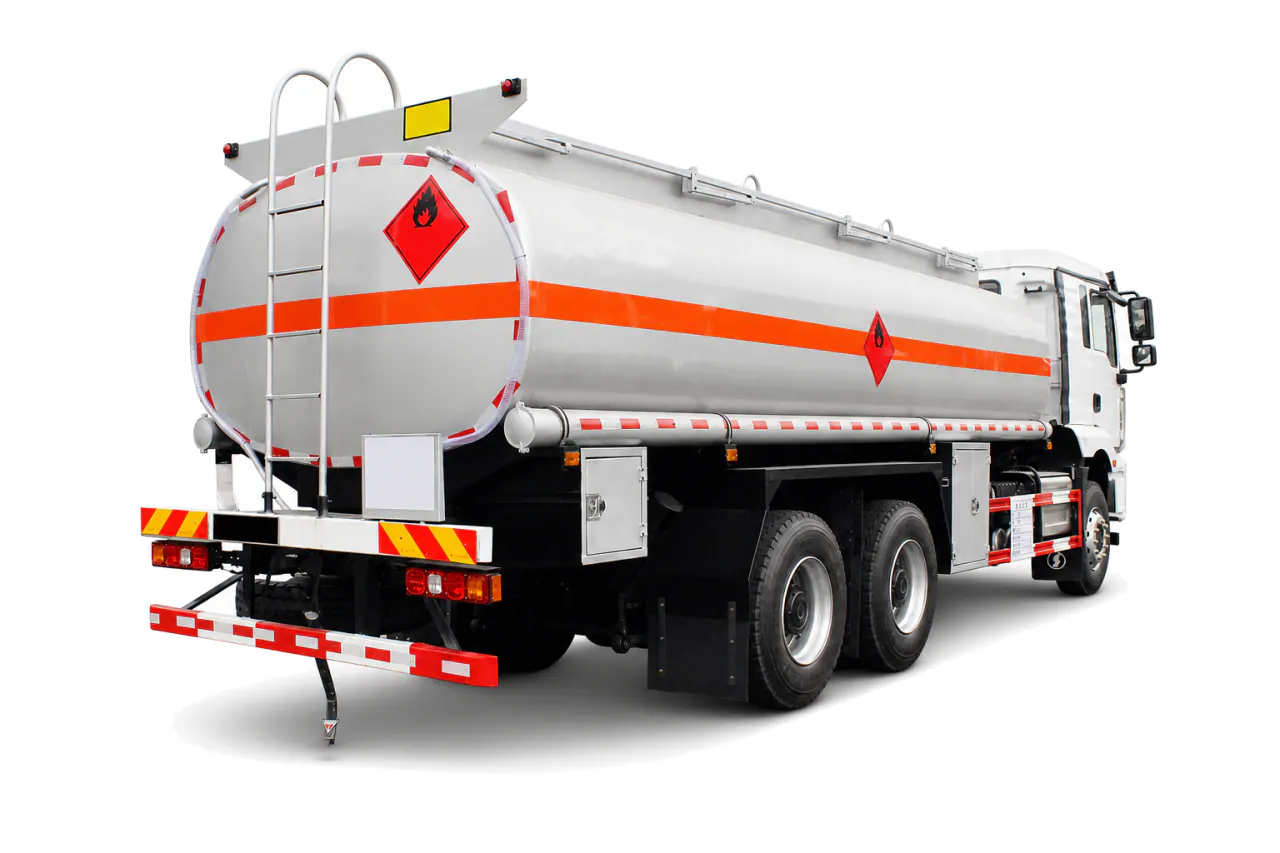

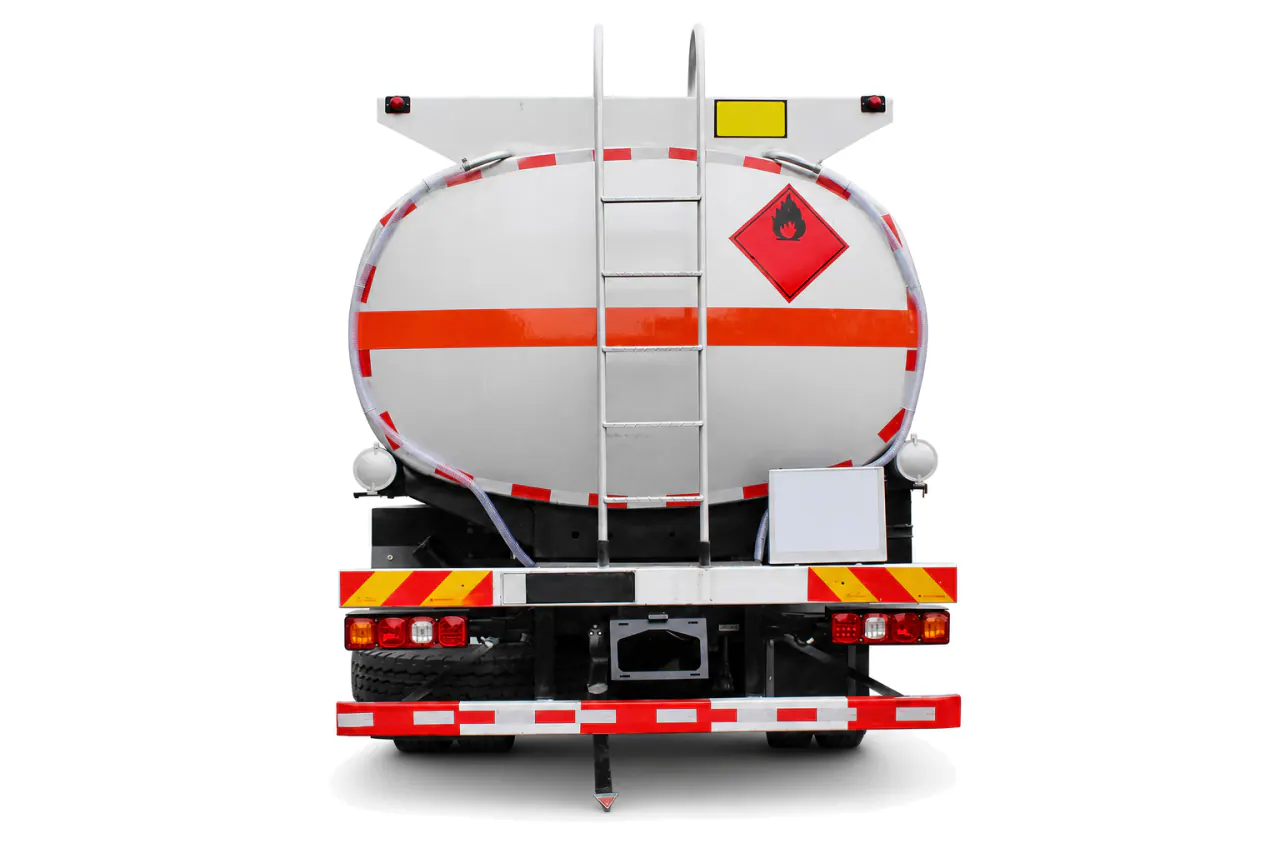

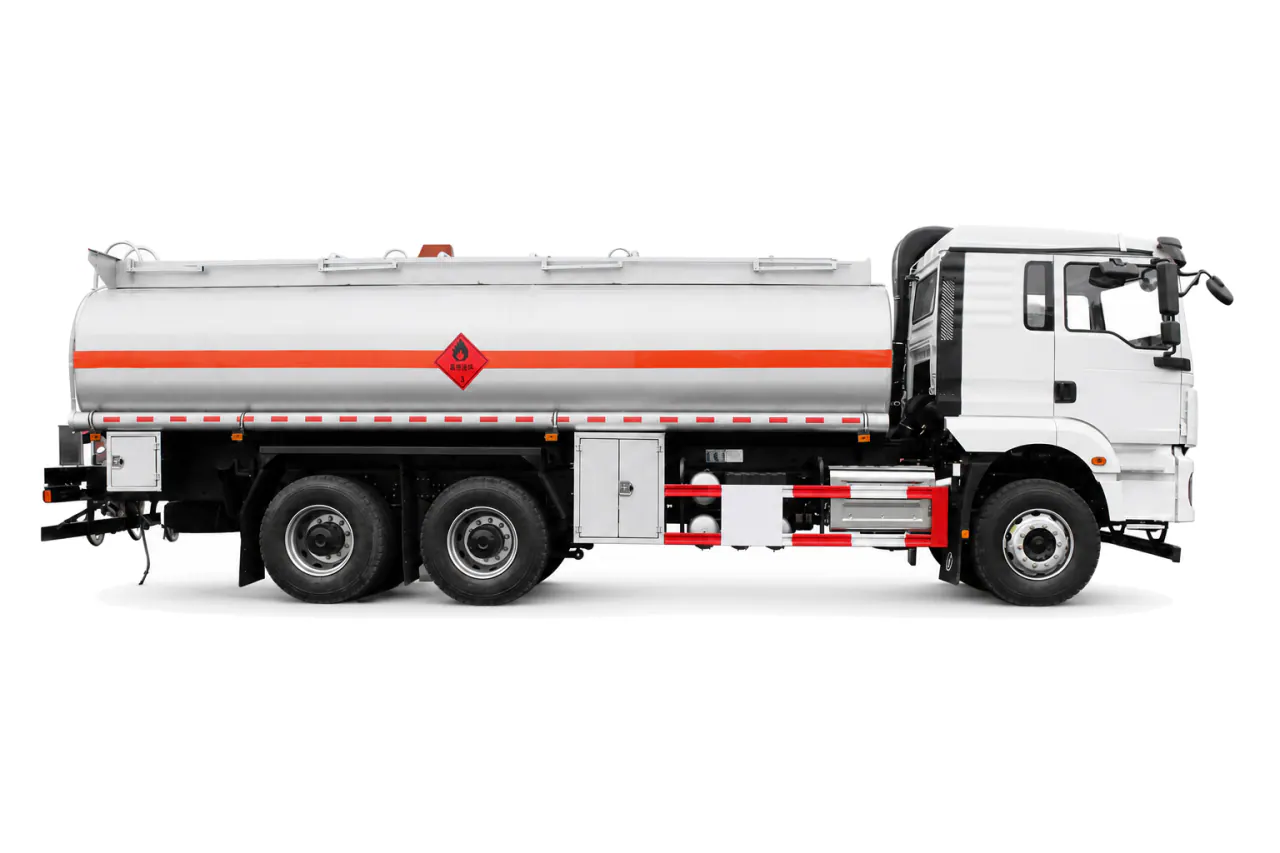

Flammable liquid tanker truck
- Nominal Tank Capacity
- 10,000 / 20,000 L
- Tank Material
- Carbon steel / stainless steel / aluminum
- Tank Thickness
- 4–6 mm
- Compartments
- 1–5
- Manhole cover options
- Options listed as "Common" or "European Standard"; confirm the cover type and standard number
- Fuel Loading System
- Top Loading / Bottom Loading
Reference configuration. Final values are confirmed for the selected chassis, model and destination.
About the flammable liquid tanker truck
The KEEYAK Flammable Liquid Tanker Truck uses a sealed tank and compatible transfer equipment for specified flammable liquids. Its nominal tank capacities are 10,000 / 20,000 L. Top or bottom loading is selected to match the approved cargo and terminal interface. Nominal tank capacity does not establish legal payload or usable filling volume. Cargo density, tank tare, axle limits, and permitted filling conditions control the final load.
It serves chemical producers, distributors, terminals, and industrial users transporting approved flammable commodities. Establish the shipping classification and tank specification first. Design pressure and material compatibility must suit the cargo, with compartmenting and vapor management specified. Confirm transfer equipment and grounding procedures, then route rules and jurisdictional approvals. The signed technical specification must identify the chassis, calculated axle loads, tank and transfer-equipment models, and destination requirements. Include capacity charts for equipment that requires them.
Typical applications
Industrial solvent delivery
The hazmat tanker carries specifically approved solvents from production or distribution sites to industrial receivers with compatible connections, seals, and vapor-control procedures.
Chemical plant transfers
Plants move classified flammable feedstocks or intermediates between authorized facilities after confirming tank code, cargo compatibility, loading temperature, and unloading arrangement.
Terminal distribution routes
Bulk terminals dispatch compatible products to commercial customers using compartment, piping, and documentation arrangements that preserve segregation and support controlled deliveries.
Manufacturing process supply
Factories receive regulated flammable liquids for production where transfer rate, hose connection, static control, containment, and storage interface are defined in advance.
Before you order
Which liquids can be considered for this tanker configuration?
Begin with the named flammable liquid and its confirmed classification and material compatibility. Share the product details and loading-terminal requirements before selecting the tank and transfer fittings. A configuration used for one fuel or solvent does not automatically suit another commodity. The agreed technical specification defines the offered service.
