LPG tanker truck
- Tank Capacity
- 2,000–62,000 L
- Tank Material
- Q345R
- Head profile
- Recorded as "Double Ellipse"; confirm the geometry from the tank drawing
- Head Thickness
- δ 10–14 mm
- Design Pressure
- 1.61 MPa
- Test Pressure
- 2.1 MPa
Reference configuration. Final values are confirmed for the selected chassis, model and destination.
About the LPG tanker truck

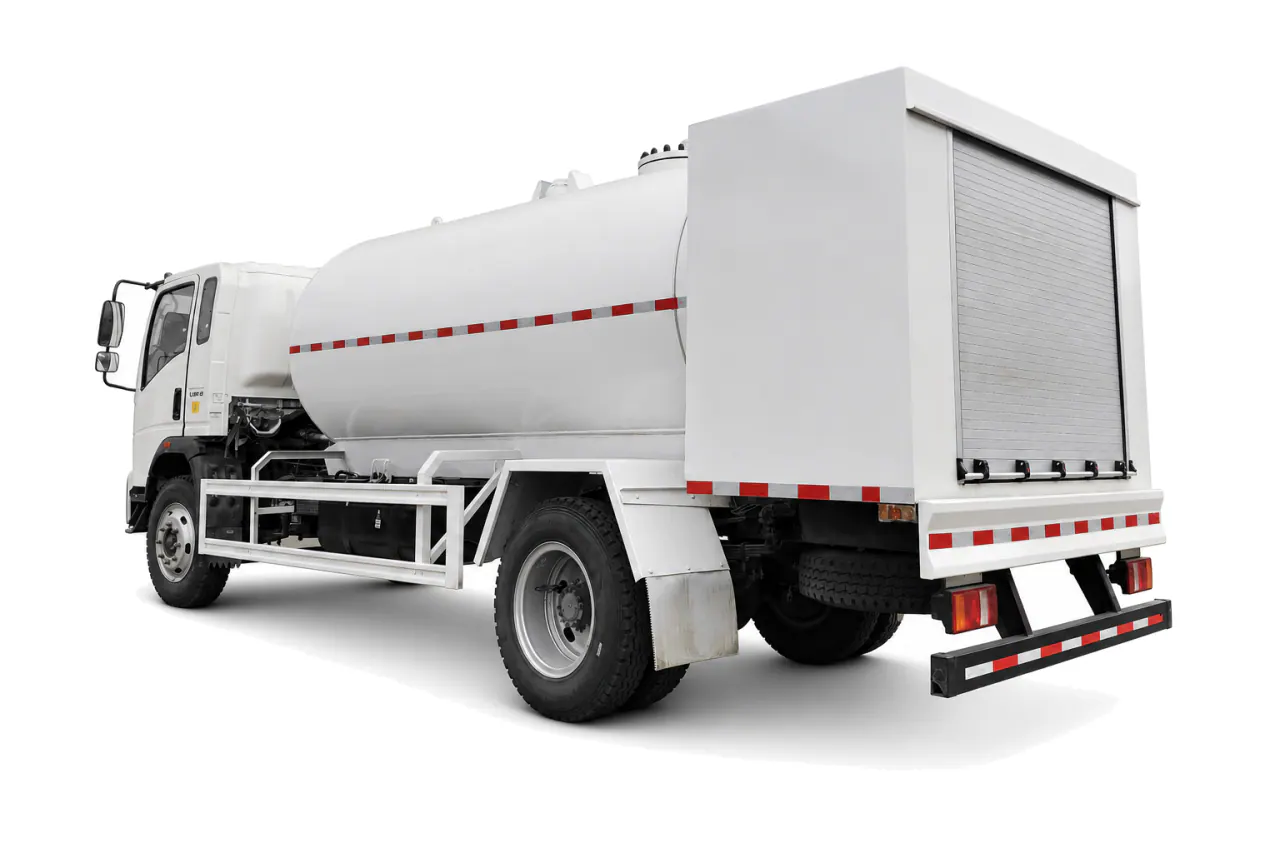

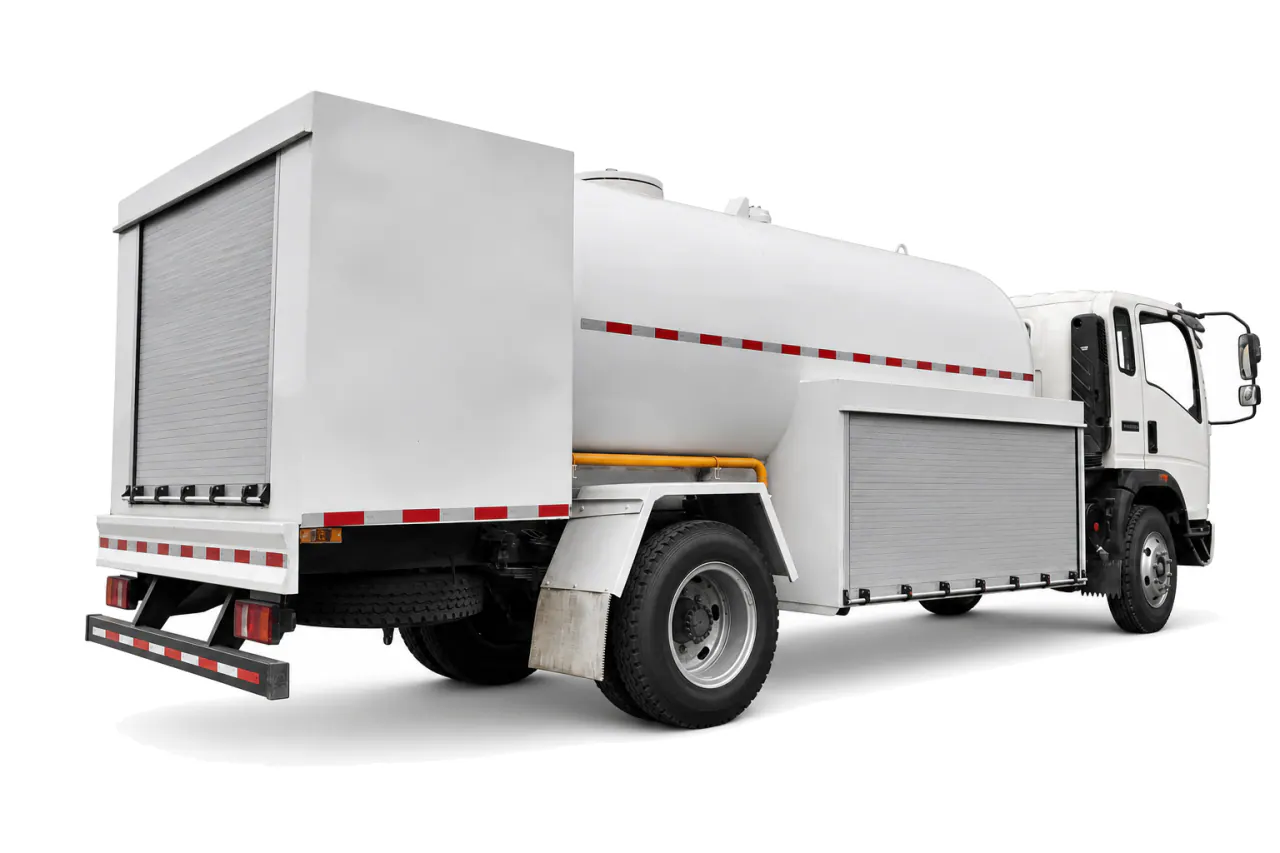

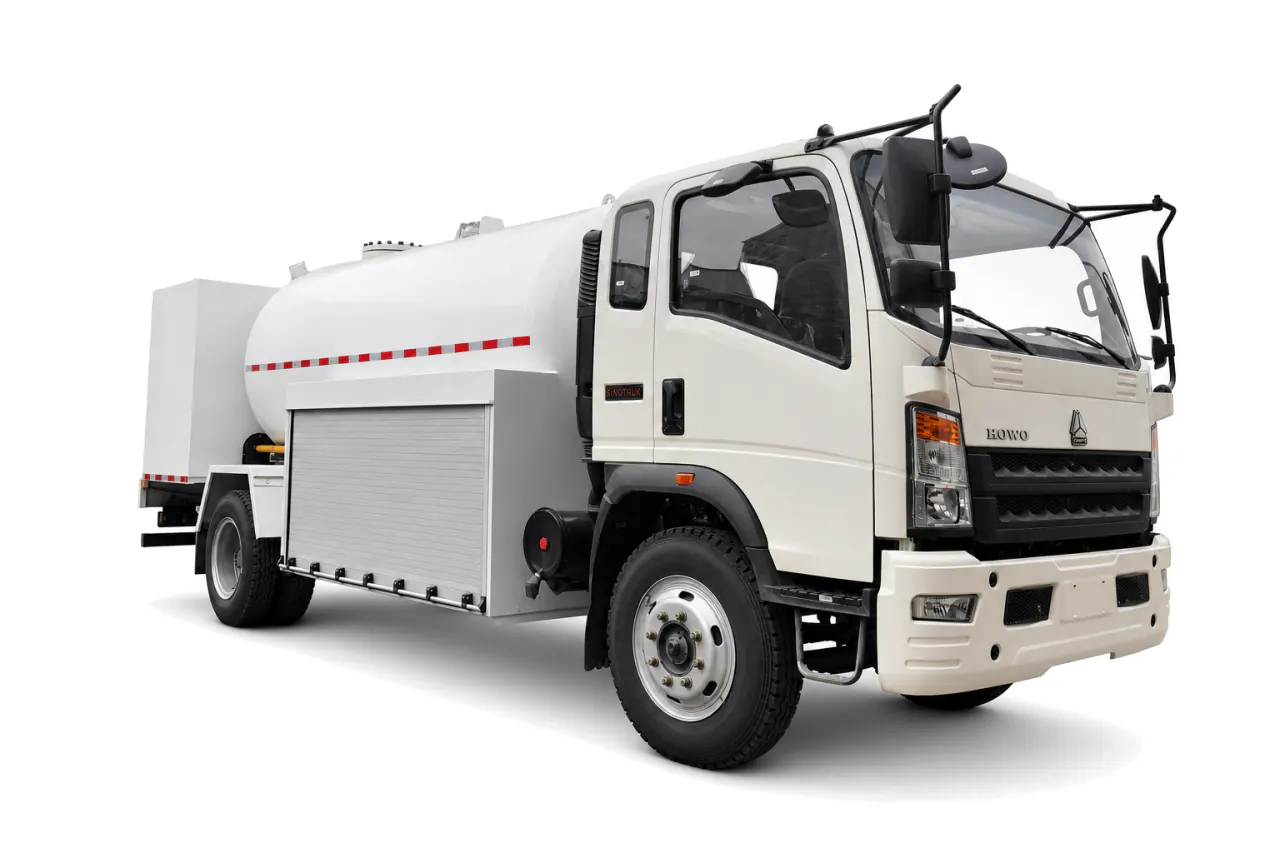

The KEEYAK LPG Tanker Truck is a propane tanker truck built around a pressure-rated cargo vessel that contains liquefied petroleum gas, with liquid and vapor connections plus selected transfer and emergency-control equipment. Tank capacity is 2,000–62,000 L and design pressure is 1.61 MPa, depending on configuration.
It serves LPG distributors, bulk plants, industrial customers, autogas networks, and rural energy suppliers. Gas composition and filling density must be confirmed for the vessel size. The design code must cover the agreed pressure and temperature basis. Pump and meter duty must suit the unloading interface, with chassis loading and destination regulations checked.
Typical applications
LPG bulk plant transfer
The pressurized gas tanker moves approved LPG between terminals and bulk storage plants using compatible liquid, vapor, grounding, and emergency-isolation connections.
Commercial propane delivery
Distributors supply commercial or agricultural storage tanks where metered flow, hose reach, access, and delivery procedures suit the selected equipment.
Rural energy distribution
The LPG bobtail serves remote customers beyond pipeline networks, subject to road access, legal routing, safe parking, and authorized receiving installations.
Autogas station supply
Configured tankers replenish approved autogas storage using transfer systems matched to station connections, required flow, vapor handling, and local operating rules.
Before you order
When is the LPG tanker truck the right choice?
An LPG tanker suits an approved bulk-gas delivery operation using a specified pressure vessel and compatible transfer system. Match the product, destination rules and receiving installation. It is not interchangeable with an atmospheric liquid-fuel tanker of similar nominal volume.
