How to Configure a Wrecker Truck for Highway Recovery

Match a highway wrecker to target vehicles, recovery method, loading access, tow conditions, route and evidence requirements.

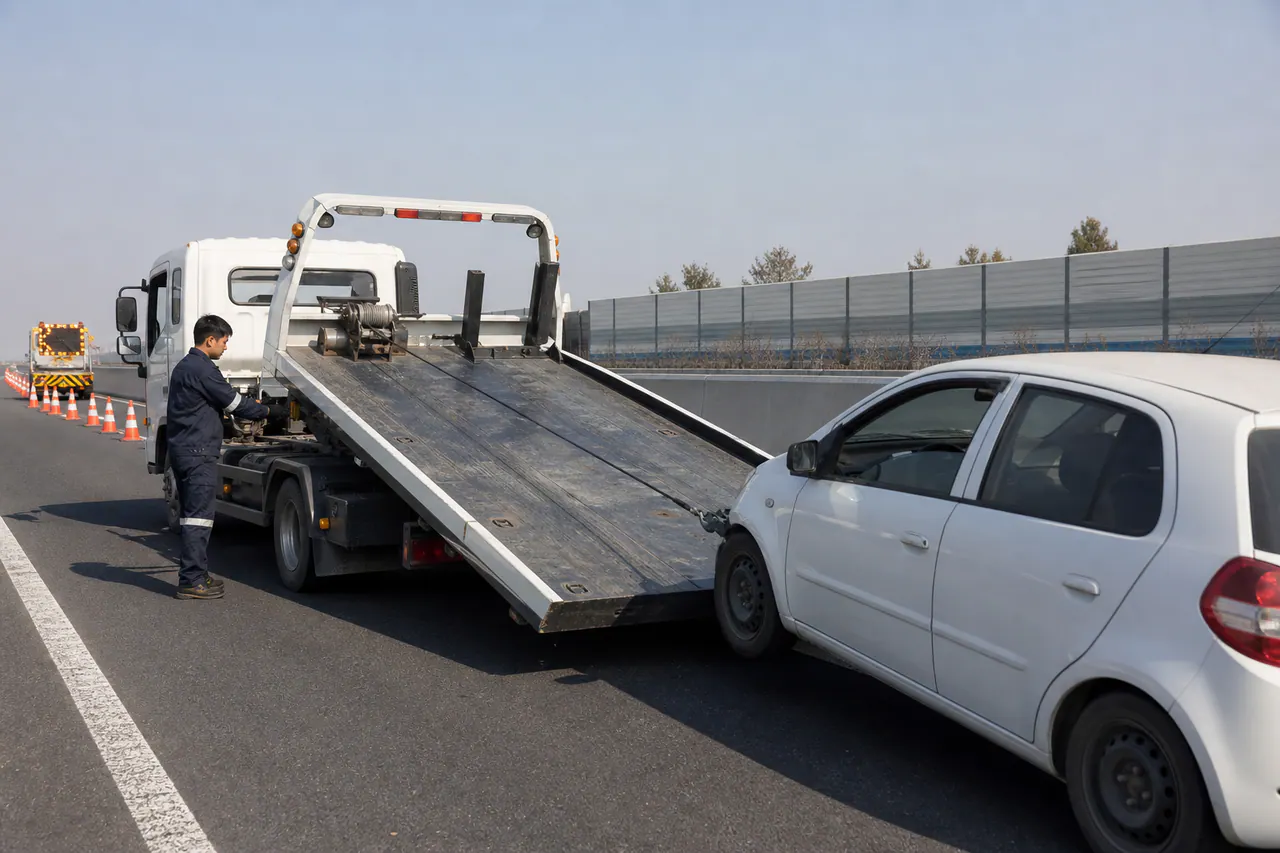

Illustrated white recovery truck positioned on a highway service lane for configuration planning
Review and evidence scopeAI and category review completed
Primary buyer questionHighway recovery configuration
Editorial audit date
Publication review statusApproved for publication with explicit evidence boundaries

Review method: AI-assisted technical consistency and editorial naturalness review. Review scope: Buyer-facing recovery-vehicle configuration and inspection information. AI review does not imply engineering, certification or project-specific approval.

Visual context: Illustrative image; it is not project, test or rating evidence. Meet the category leads

Operating mission and decision scope

Useful for: Roadside-recovery operators and fleets defining a highway wrecker duty

Highway recovery combines traffic exposure, disabled-vehicle condition and transport distance. The configuration must address the common mission without assuming that every damaged or loaded vehicle can be handled the same way.

Recovery procedure remains an operator and site decision. The buyer guide defines procurement inputs and evidence, not a roadside operating sequence.

Mission inputs

Define the job, route, load, site and destination conditions before asking a supplier to propose a configuration:

  1. 01Target vehicle types and maximum expected condition
  2. 02Recovery versus transport frequency
  3. 03Typical road, shoulder and access conditions
  4. 04Required deck, wheel-lift or underlift method
  5. 05Tow distance and destination workflow
  6. 06Destination vehicle and road requirements

From operating requirement to approved configuration

Keep the mission, vehicle selection and evidence review in order so that a model name never substitutes for a defined operating requirement.

  1. 01Define the mission

    Highway recovery configuration

  2. 02Fix operating inputs

    Target vehicle types and maximum expected condition; Recovery versus transport frequency

  3. 03Test vehicle fit

    Primary mission and Target vehicle must both pass.

  4. 04Approve project evidence

    Target-vehicle duty schedule; Body and equipment rating documents

A failed or unresolved step returns the project to the previous controlled decision. It does not become an assumed pass.

Mission-fit decision matrix

Use every row as a mission-fit check. A configuration should not pass because it performs well on only one operating factor.

Scroll horizontally to view all columns.

Decision factorWhat to choose or checkLimit or condition
Primary missionChoose transport, towing or combined recovery as the controlling duty.One body type does not safely cover every incident.
Target vehicleMatch ratings and attachment method to the actual vehicle population.Vehicle weight alone does not define attachment or driveline suitability.
Working geometryVerify lift, tow and winch ratings at the specified position.A headline rating may apply only at a defined geometry.
Chassis integrationCheck completed axle loads, overhang, stability and equipment clearance.Adding equipment can reduce legal carrying or towing margin.

Configuration evidence checklist

Ask for evidence that is traceable to the selected model, configuration, vehicle or project scope. A record from another project is context, not verification.

  • Target-vehicle duty schedule
  • Body and equipment rating documents
  • Completed-vehicle layout and axle-load calculation
  • Inspection and functional-test scope

Mission-planning traps

Selecting from target vehicle weight alone

Better control: Include condition, attachment, geometry, driveline and road clearance.

Treating winch pull as tow capacity

Better control: Verify each rating for its separate function.

Assuming a highway shoulder is always usable

Better control: Include access, traffic-control and setup-space limits in the duty.

Limitations

  • This guide is not an operating or roadside-safety procedure.
  • Qualified operators must follow the equipment manual and site controls.
  • Stop work when attachment, rating, stability, braking, traffic control or target-vehicle condition is uncertain.

Evidence scope and technical basis

Each source is limited to what it can support. This makes the evidence chain readable to buyers, search engines and AI systems without turning a general source into a project claim.

KEEYAK buying process

Supports: Controls the project-input, quotation, approval and inspection workflow described in this guide.

Does not establish: It does not replace the signed quotation, approved specification, selected OEM documents or unit-linked project records.

KEEYAK public project documents

Supports: Provides public checklists and worksheets; the signed project documents remain controlling.

Does not establish: It does not replace the signed quotation, approved specification, selected OEM documents or unit-linked project records.

KEEYAK Wrecker Truck family

Supports: Defines the relevant product family and published configuration boundaries. Project-specific ratings require the selected OEM documents.

Does not establish: It does not replace the signed quotation, approved specification, selected OEM documents or unit-linked project records.

Miller Industries carrier operator manual

Supports: Primary manufacturer example showing that towing-equipment ratings, chassis capacity and operating limits are manual and model specific. It does not provide a KEEYAK project rating.

Does not establish: It applies to the named manufacturer example and does not establish a KEEYAK model rating or project result.

Review the inputs before choosing a model

Send the destination, operating mission, target load, working conditions and required evidence. The signed quotation and approved specification will control the project.

Request a configuration review
