Knuckle-boom vs stiff-boom truck-mounted crane

Compare knuckle-boom and stiff-boom truck cranes against the required reach path and obstacles. Include stowed space, deck impact, the applicable load chart and maintenance access.

Articulation and direct telescopic reach
  • 01Knuckle boom: placement around obstacles
  • 02Stiff boom: open, direct reach path
  • 03Both: exact chart, stowage and installation review

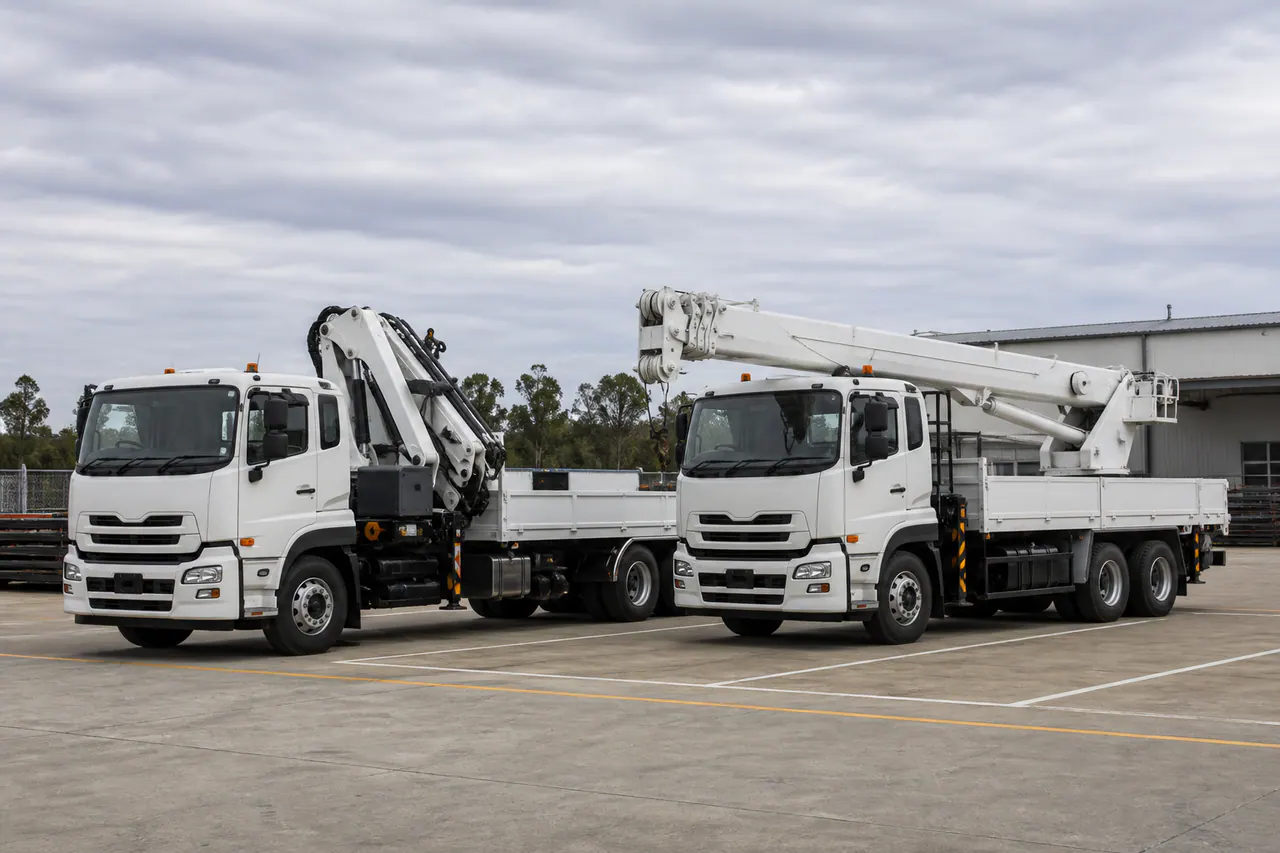

View the reference imageKnuckle-boom and stiff-boom truck cranes presented side by side

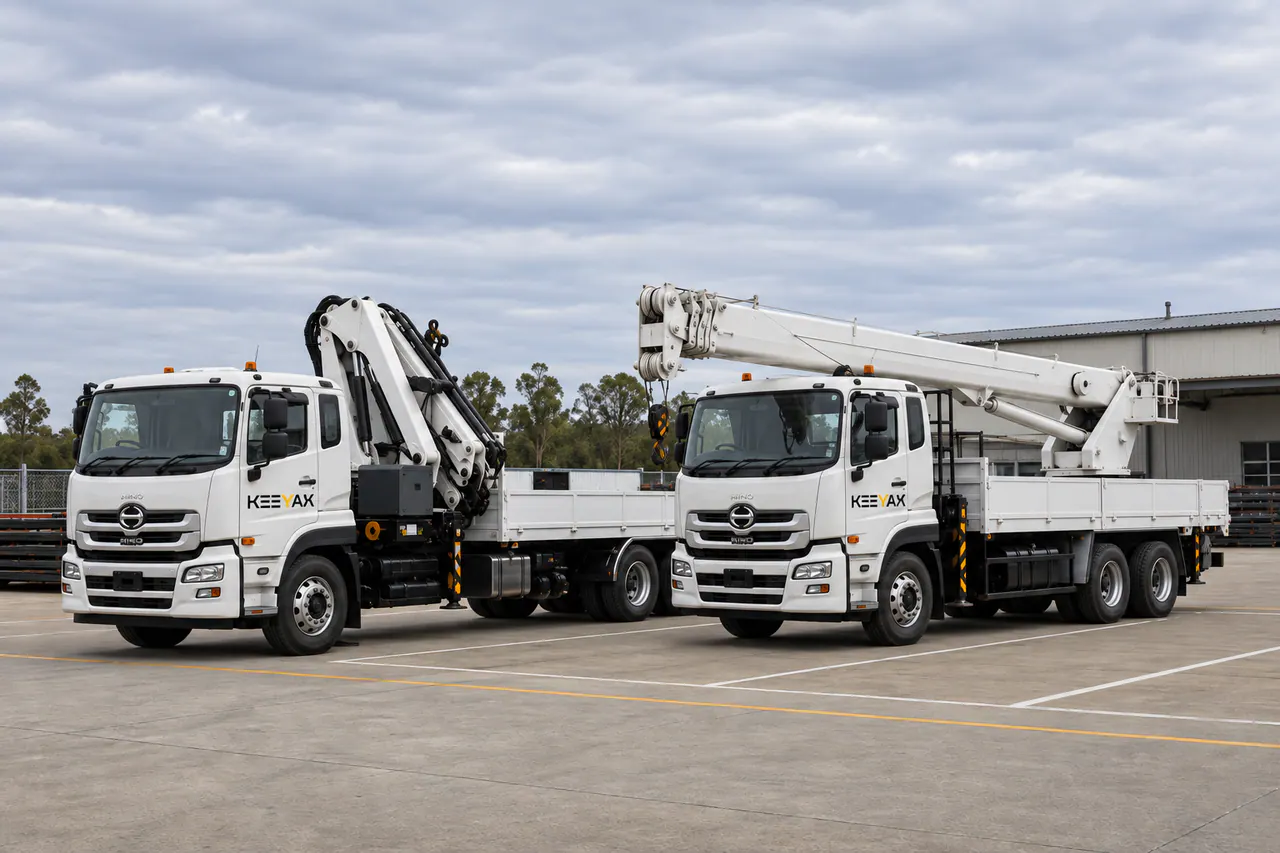

Knuckle-boom and stiff-boom truck cranes presented side by side

Compare the cranes at the positions your deliveries require

Two particular cranes can cover some of the same lifts and differ sharply on others. Compare the proposed models at the pickup and placement positions your deliveries require.

Use their load charts for that comparison, then check the folded package, mounting, usable deck length, axle margin and service access. A boom type does not establish the capacity or payload of the finished truck.

Keep operating geometry and stowed dimensions in the same comparison

The crane must work at the delivery site and fit the truck between jobs. Its joints, controls and service requirements also matter to the fleet. Compare those details on the proposed models rather than assuming a universal reach, strength or maintenance advantage for one type.

Compare the complete delivery truck on the same lift cases

Request two offers against the same load, pickup and placement schedule. Compare their charts at the required geometry, then review the cargo allowance remaining after each installation. Any payload or reach comparison needs the proposed crane model, mounting position and support configuration for both offers. Manufacturer procedures and the applicable chart remain controlling. OSHA 1926.1417: crane operation

Scroll horizontally to view all columns.

A like-for-like boom comparison
Buyer questionEvidence from each proposalHow to use it
Can it place the required load?Exact chart, working envelope, obstacle clearances and attachment deductions at each required radiusReject an option that cannot cover the agreed lift cases. Clearance and capacity change with radius.
Can the truck carry the delivery?Installed mass, axle schedule, deck dimensions, folded size, mounting position and deck intrusionCompare usable cargo allowance and stowed clearance after the crane is installed.
Will it fit the sites?Permitted support deployment and setup footprintFlag sites requiring a different delivery method.
Can the fleet maintain it?Controls, joints, inspection points, wear-parts list and local support for the proposed modelPrice the model-specific maintenance scope instead of relying on boom-type generalizations.

OSHA 1926.1417: crane operation OSHA 1926.1404(q): outriggers and stabilizers

Send both suppliers the same lift schedule

Include obstacles and support space alongside the load positions. Request the applicable charts and installation drawings, then compare remaining cargo capacity and local support. Any required lift outside a charted configuration needs a different proposal or site method.

Information to prepare for this review
  • Load and dimensions
  • Required radius, height and below-grade reach if relevant
  • Obstacles and placement access
  • Available stowed and deck space
  • Lift frequency and operator workflow
  • Outrigger space, ground and maintenance support
Records to request and keep
  • Scenario-based operating envelope
  • Like-for-like load-chart comparison
  • Installation and stowed-dimension drawing
  • Completed payload, axle and service-access review
Common mistakes and what to check instead
  • Declaring one boom type stronger: Compare charts at the same load, radius, height and setup.
  • Ignoring the stowed crane: Check transport dimensions, deck space and axle distribution.
  • Choosing from reach alone: Include load, obstacles, ground, outriggers and operator workflow.

Scope of this guide

The comparison cannot replace manufacturer load charts.

Model, mounting and setup can change the result.

Do not select either option when the required lift lies outside its approved chart or setup conditions.

Sources and applicability

OSHA 1926.1417: crane operation

U.S. construction crane operating requirements and manufacturer procedures. Applicability depends on jurisdiction and activity; not a KEEYAK certification.

Sources checked:

OSHA 1926.1404(q): outriggers and stabilizers

U.S. reference linking permitted outrigger deployment to manufacturer procedures and the load chart. Local rules and exact installation documents remain controlling.

Sources checked:
