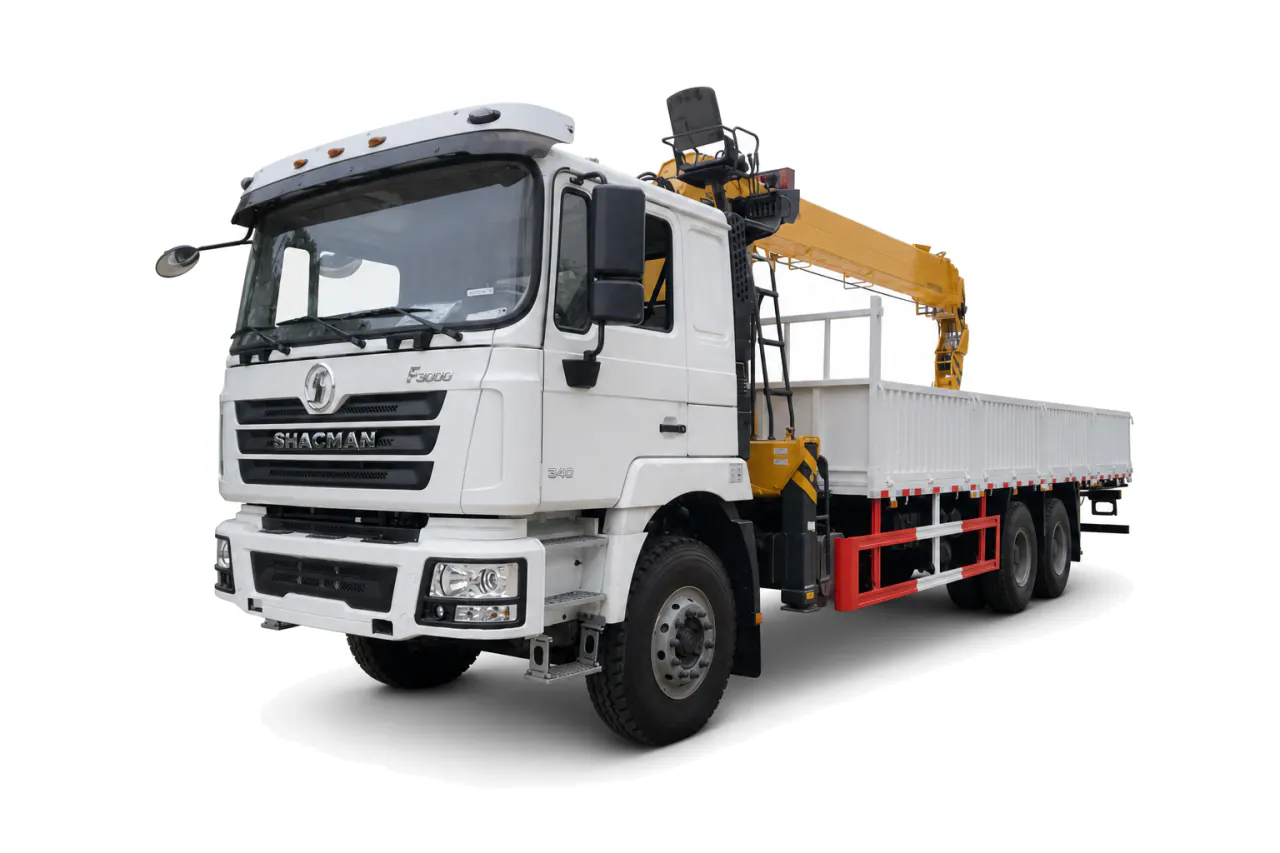

Stiff-Boom Truck-Mounted Crane, Front left view

Stiff-Boom Truck-Mounted Crane

Crane Type
Stiff telescopic boom
Maximum Lifting Capacity
5 / 8 / 9 / 13 / 16 / 20 t
Truck Payload
1–40 t
Steering
LHD / RHD
Drive Options
4×2 / 4×4 / 6×4 / 6×6 / 8×4
Emission Standard
Euro 2–6
Request this configuration

Reference configuration. Final values are confirmed for the selected chassis, model and destination.

About the Stiff-Boom Truck-Mounted Crane

The KEEYAK Stiff-Boom Truck-Mounted Crane is a cargo vehicle fitted with a straight loader crane for lifting and placing compatible loads. The rigid boom extends outward. Its maximum lifting capacities are 5 / 8 / 9 / 13 / 16 / 20 t, while 1–40 t describes the separate cargo-body payload range. Maximum lifting capacity applies only under the conditions stated in the selected crane model's load chart. Capacity decreases as working radius and boom extension increase.

It serves construction firms, utility contractors, building suppliers, and field service teams needing transport and lifting from one vehicle. Crane model, boom geometry, lifting radius, chassis ratings, body space, ground conditions, and support arrangement determine project suitability. Final chassis matching, axle-load calculation, equipment model, load chart, and destination compliance shall be confirmed in the signed technical specification.

Stiff-Boom Truck-Mounted Crane technical configuration concept

Applications for Stiff-Boom Truck-Mounted Crane

  1. Structural Component Delivery

    Contractors transport and place compatible beams, frames, precast items, or fabricated components where a direct lifting path is available beside the vehicle.

  2. Utility Pole Handling

    The straight boom lifts compatible poles and long components during roadside utility work, provided lifting points, radius, overhead clearance, and ground support are verified.

  3. Equipment Loading Support

    Field teams load machinery parts, attachments, and packaged equipment onto the cargo deck when item mass and crane reach remain inside approved limits.

  4. Remote Material Placement

    The vehicle carries supplies to isolated worksites and positions them across a clear work area without requiring a separate mobile crane.

Before you order

When is the Stiff-Boom Truck-Mounted Crane the right choice?

Consider a stiff-boom loader crane for planned material handling where the boom geometry and specified lifting arrangement suit the load path. Compare capacity at the required radius, stowed dimensions and working space with a knuckle-boom option rather than deciding from maximum tonnage alone.
